SUN HYDRAULICS
QMN/S

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

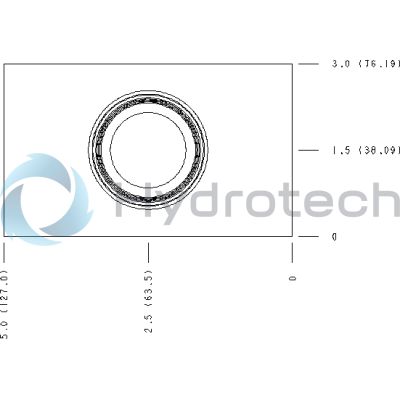

The Sun Hydraulics QMN/S (Material Number: QMN/S) is a line mount manifold designed to accommodate high flow valves in hydraulic systems. This manifold features a robust ninety-degree body type with no specific interface, making it versatile for various applications. It comes with two mounting holes, each having a diameter of 0.42 inches (10.7 mm), and is designed for through-hole mounting, ensuring secure attachment in hydraulic setups. The unit includes one open cavity, specifically a T-34A cavity, and is equipped with SAE 20 port sizes to facilitate efficient fluid transfer. This product is constructed from 6061T651 aluminum, known for its excellent corrosion resistance and durability without the need for anodizing, which can compromise fatigue life due to increased brittleness. It is important to consider that the maximum system pressure should not exceed 3000 psi (210 bar) due to the material's limitations. The QMN/S manifold does not undergo anodizing processes as it maintains sufficient corrosion resistance and avoids additional costs and potential issues related to fatigue life and torque during component removal. This manifold serves as an integral part of hydraulic systems where reliable fluid management is necessary, offering compatibility with Sun's cartridge cavities and supporting efficient system design through tools like QuickDesign with SmartConnect. Its construction caters to applications requiring durable and corrosion-resistant components capable of handling substantial flow rates within specified pressure limits.
