SUN HYDRAULICS
QC5

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

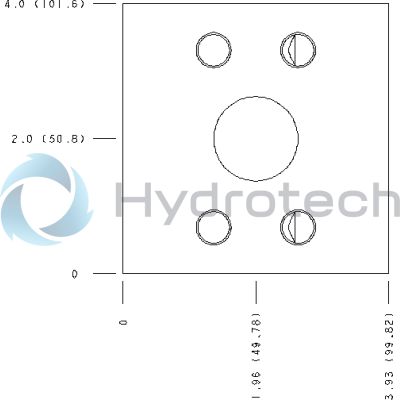

The Sun Hydraulics QC5 (Material Number: QC5) is a specialized hydraulic manifold designed for line mount applications. This model features a ninety-degree body type, making it suitable for systems requiring compact and efficient hydraulic routing. It is equipped with M10x1.5 6H mounting hole threads, with a depth of 15.7 mm, and includes two mounting holes to ensure secure installation. The QC5 model has one open cavity and utilizes the T24A cavity type, which supports various cartridge valves for versatile functionality in hydraulic circuits. The port size of this manifold is specified as 1-1/4 Code 62, accommodating high-flow requirements commonly found in industrial hydraulic systems. Constructed from 6061T651 aluminum, the QC5 offers excellent corrosion resistance without the need for anodizing, maintaining its structural integrity even in harsh environments. However, it is important to note that this aluminum construction limits the maximum system pressure to 3000 psi (210 bar). The QC5 manifold is ideal for applications where space-saving and efficient fluid management are crucial. Its robust design ensures reliable performance across various operational demands while providing flexibility in system configurations thanks to its compatibility with standard Sun Hydraulics cartridge valves.
