SUN HYDRAULICS
QAN

$267.40 USD

Tags:

SUN HYDRAULICS
Material:QAN
Summary:Manifold

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

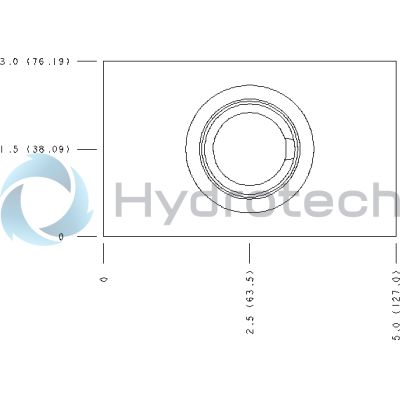

The Sun Hydraulics QAN (QAN) is a line mount hydraulic manifold designed for high-flow applications. This manifold features a unique ninety-degree configuration with an integrated gauge port, allowing for efficient system monitoring and maintenance. It is constructed with 6061T651 aluminum, known for its excellent corrosion resistance and relative strength, making it suitable for demanding environments. The manifold has a mounting hole diameter of 0.41 inches (10.4 mm) and is designed to accommodate two mounting holes that go through the body, ensuring secure installation. It includes one open cavity compatible with the T-24A cavity type and offers a port size of SAE 20, facilitating seamless integration into existing hydraulic systems. The QAN model is particularly useful in applications requiring reliable fluid control and distribution within hydraulic circuits. Its robust design supports various configurations to meet specific operational needs while maintaining optimal performance under pressure conditions up to 3000 psi (210 bar). The manifold's compatibility with Sun cartridge cavities allows for versatile customization options to enhance system functionality further. This product does not undergo anodizing due to potential impacts on fatigue life and other logistical considerations, ensuring the integrity of its construction remains uncompromised over time. The Sun Hydraulics QAN manifold stands out as a durable component in hydraulic systems requiring efficient flow management without sacrificing reliability or longevity.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Ninety degree with gauge portNinety degree with gauge port
Mounting Hole Diameter	.41 in.10,4 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-24A
Port Size	SAE 20SAE 20

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
