The Sun Hydraulics PSDLMBN212 (Material Number: PSDLMBN212) is an electroproportional, direct-acting reducer-reliever valve designed to efficiently manage hydraulic pressure. This valve reduces high primary pressure at inlet port 2 to a consistent, lower pressure at port 1 while offering a full flow relief function from port 1 to tank port 3. The device is initially set to a relieving mode and becomes active when the coil is energized, connecting ports 2 and 1. As current increases, so does the reduced pressure at port 1. If the pressure at port 1 surpasses the coil-induced setting, it will be relieved to port 3. Port 4 drainage ensures insensitivity to pressure changes at port 3, enhancing control and dynamic response during transitions from reducing to relieving modes. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a capacity of up to 5 gpm (20 L/min). It features Sun's floating style construction for reliability in contaminated systems and dead-headed conditions. The valve provides excellent pressure control with minimal oil consumption of about 0.1 gpm (0.4 L/min) during transition phases. For optimal performance, an amplifier with current sensing and adjustable dither between 100-250 Hz is recommended. This model allows for manual control using an 'L' adjustment screw, useful in emergencies or power failures. The adjustment screw lets users increase spring bias load up to its maximum setting when fully backed out. Additionally, controlling the drain port's pressure can effectively increase the valve's nominal setting without exceeding specified limits. The PSDLMBN212 incorporates design features that minimize internal binding risks due to excessive installation torque or machining variations, ensuring reliable operation under challenging conditions.

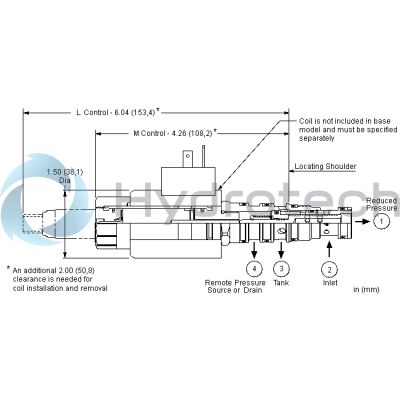

This electro-proportional, direct-acting reducer/reliever valve reduces a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full flow relief function from port 1 to tank (port 3). The valve is biased to the relieving mode. Energizing the coil connects port 2 to port 1. Increasing the current to the coil will proportionally increase the reduced pressure at port 1. If pressure at port 1 exceeds the setting induced by the coil, pressure at port 1 is relieved to port 3. Draining port 4 makes the valve insensitive to pressure at port 3. This valve is open in the transition from reducing to relieving which provides good pressure control and dynamic response. Optional full manual control is available.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
- Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
- Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
- The transition from reducing to relieving is slightly open. The result is very good pressure control with oil consumption of about 0.1 gpm (0,4 L/min.).
- For optimum performance, an amplifier with current sensing and adjustable dither should be used. Dither should be adjustable between 100 - 250 Hz.
- Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
- Uses for the 'L' manual screw adjustment include: emergency valve setting during power failure or alternatively boosting the valve setting
- With the 'L' adjustment screw, all ranges are factory set at zero (adjustment screw fully backed out). With the coil de-energized, clockwise adjustment of the screw will increase the spring bias load up to the maximum setting for that range. With the coil energized, any mechanical pressure setting is directly additive to the coil induced value.
- By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
Cavity | T-21A |
Series | 1 |
Capacity | 5 gpm20 L/min. |
Maximum Operating Pressure | 5000 psi350 bar |
Maximum Valve Leakage at 110 SUS (24 cSt) | 20 in³/min.330 cc/min. |
Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
Solenoid Tube Diameter | .75 in.19 mm |
Valve Hex Size | 7/8 in.22,2 mm |
Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
Locknut Hex Size | 9/16 in.15 mm |
Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
Model Weight (with coil) | 1.20 lb0,55 kg |
Seal kit - Cartridge | Viton: 990-021-006 |
Seal and nut kit - Coil | Viton: 990-770-006Viton: 990-770-006 |
