SUN HYDRAULICS
PBDBFAN


$64.60 USD

Tags:

  • SUN HYDRAULICS
  • Material:PBDBFAN
  • Model:PBDB-FAN
  • Summary:Cartridge

Quantity in stock: 5

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics PBDBFAN (PBDBFAN) is a pilot-operated, pressure reducing valve designed to manage high primary pressures at the inlet port and reduce them to a consistent lower pressure at port 1. This makes it ideal for hydraulic systems requiring multiple pressure levels using a single pump. Compatible with three-port pressure reducing and reducing-relieving cartridges, it offers physical interchangeability, maintaining the same flow path and cavity size for ease of integration. The valve is equipped with a 150-micron stainless steel screen protecting the main stage orifice. It supports maximum inlet pressures based on adjustment ranges, such as 2000 psi for ranges D, E, N, and Q; 3000 psi for A, B, and H; and up to 5000 psi for C and W ranges. The PBDBFAN displays stable pressure-flow characteristics with low hysteresis due to its pilot-operated design. It allows full reverse flow from reduced pressure port 1 to inlet port 2 but may require an additional check valve in circuits needing reverse free flow. For applications where pilot flow consumption is crucial or dynamic response is needed, direct-acting valves are recommended instead. The valve's construction includes corrosion-resistant options identified by model code suffixes AP or LH for enhanced durability in corrosive environments. Its floating style construction minimizes internal part binding due to excessive installation torque or machining variations. Additional features include adjustable settings with specific control options like W or Y controls for tailored performance requirements. This model also comes equipped with Viton seal kits suitable for phosphate ester fluids while being incompatible with petroleum-based substances.

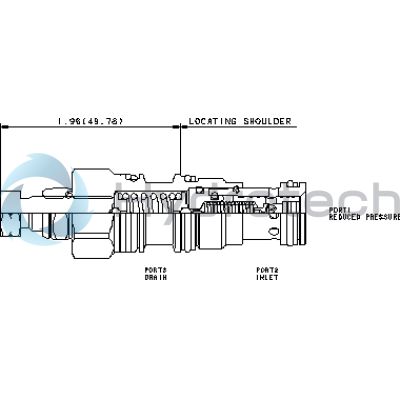

Pilot-operated, pressure reducing valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, allowing circuits with multiple pressure requirements to be operated using a single pump.

  • All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
  • Main stage orifice is protected by a 150 micron stainless steel screen.
  • Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
  • Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
  • Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-11A
Series1
Capacity10 gpm40 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Control Pilot Flow7 - 10 in³/min.0,11 - 0,16 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-011-006

Show FAQ

Additional Resources



Notes:
  • Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) N and Q are 2000 psi (140 bar) W is 5000 psi (350 bar)inlet pressure
  • For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
