SUN HYDRAULICS
NEEDLE CARTRDGE
NFCCLCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

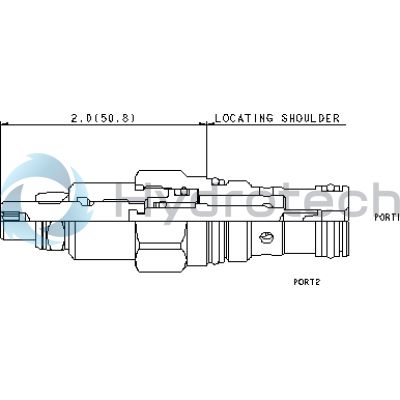

The Sun Hydraulics NFCCLCN (NFCCLCN) is a versatile needle valve designed for precise flow regulation in hydraulic systems. This component serves as a fully adjustable orifice, allowing users to control flow rates by adjusting from fully closed to the maximum orifice diameter. It functions as both a flow control and shutoff valve but is not pressure compensated. This means that the flow rate through the valve is dependent on the pressure differential across its ports, specifically following the square root relationship. The NFCCLCN model features a balanced adjustment mechanism that ensures easy operation even under high-pressure conditions, with a sharp-edged orifice design that minimizes variations in flow due to changes in fluid viscosity. The valve's bidirectional flow path offers flexibility in system design, although the preferred direction is from port 1 to port 2 for compatibility with other flow control devices. The NFCCLCN model guarantees zero leakage when fully closed, enhancing system reliability. It's important to note that cartridges equipped with EPDM seals are intended for use with phosphate ester fluids, as exposure to petroleum-based substances can damage these seals. This needle valve fits into cavity T-13A and belongs to Series 1, providing a capacity of up to 7 gpm (28 L/min) at a maximum operating pressure of 5000 psi (350 bar). The adjustment from fully closed to open requires approximately 5.5 counterclockwise turns. Installation specifications include a valve hex size of 7/8 inch (22.2 mm) and an installation torque range of 30-35 lbf ft (41-47 Nm). For maintenance, an internal hex size of 5/32 inch (4 mm) is used for adjustments, while the locknut requires a hex size of 9/16 inch (15 mm) and torque between 80-90 lbf in (9-10 Nm). The unit weighs approximately .30 lb (.15 kg), and Viton seal kits are available under part number 990010006 for replacement needs.
