SUN HYDRAULICS
LN8

$749.80 USD

Tags:

SUN HYDRAULICS
Material:LN8
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

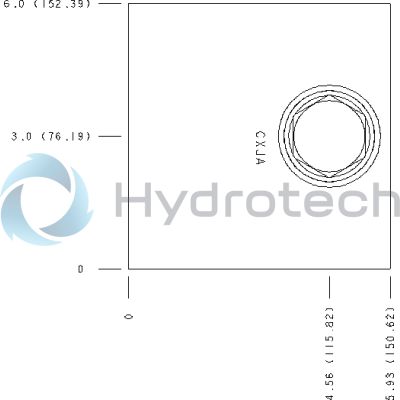

The Sun Hydraulics LN8 (Material Number: LN8) is a line-mount manifold designed specifically for hydraulic systems requiring a ninety-degree flow configuration with a reverse flow check. This robust component is made from 6061T651 aluminum, known for its excellent corrosion resistance and adequate strength, making it suitable for various hydraulic applications where durability and reliability are paramount. The manifold features an M16x2,0 6H metric thread for mounting holes and supports two Code 62 port sizes. It includes two mounting holes with a depth of 15.7 mm (.62 in.) and an open cavity designated as T18A, providing flexibility in system integration. This manifold is engineered to support maximum pressures up to 3000 psi (210 bar), considering the limitations of aluminum material under high-pressure conditions. The LN8 model does not undergo anodization due to reasons such as cost-effectiveness, logistical challenges, and potential negative impacts on fatigue life; instead, it relies on the inherent properties of the aluminum alloy used. This product is ideal for use in hydraulic systems where efficient flow control and reliable performance are essential, without the need for additional surface treatments like anodizing that could compromise its structural integrity over time.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Ninety degree with reverse flow checkNinety degree with reverse flow check
Mounting Hole Thread	M16x2,0 - 6H (metric models)M16x2,0 - 6H (metric models)
Mounting Hole Depth	.62 in.15,7 mm
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-18A
Port Size	2" Code 622" Code 62

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
