SUN HYDRAULICS
LDQ

$275.40 USD

Tags:

SUN HYDRAULICS
Material:LDQ
Summary:Manifold

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics LDQ (LDQ) is a robust line-mount manifold designed for versatile hydraulic applications, compatible with all cartridges utilizing the T18A cavity. This manifold features a 1.25 SAE C61 interface, ensuring seamless integration into various hydraulic systems. It incorporates through port 1 with a gauge port, allowing for efficient fluid management and monitoring. The manifold is constructed from durable 6061T651 aluminum, known for its excellent corrosion resistance and cost-effectiveness, making it suitable for demanding environments without the need for anodizing. The LDQ manifold includes 22 mounting holes threaded at M14x1,5 with a depth of .62 inches (15.7 mm), providing secure installation options. It is configured with open cavities to accommodate specific hydraulic needs and supports port sizes of 1-14 Code 61. While the aluminum body limits the pressure rating to no more than 3000 psi (210 bar), it ensures reliable performance within this range. This manifold serves as a critical component in hydraulic systems requiring high flow rates and robust construction while maintaining cost efficiency and structural integrity over time.

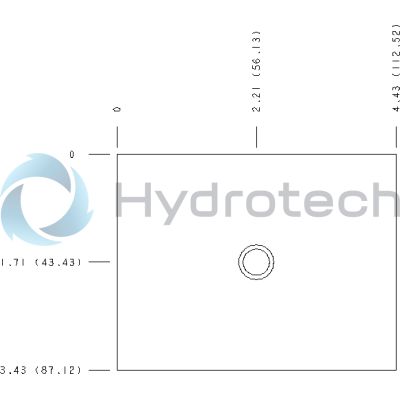

Description

All cartridges utilizing the T-18A cavity can be installed in this T-18AU manifold.

Body Type	Line mountLine mount
Interface	1.25 SAE C611.25 SAE C61
Body Features	Through port 1 with gauge portThrough port 1 with gauge port
Mounting Hole Thread	M14x1,5 - 6H (metric models)M14x1,5 - 6H (metric models)
Mounting Hole Depth	.62 in.15,7 mm
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-18AU
Port Size	1 1/4" Code 611 1/4" Code 61

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
