SUN HYDRAULICS
HED

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

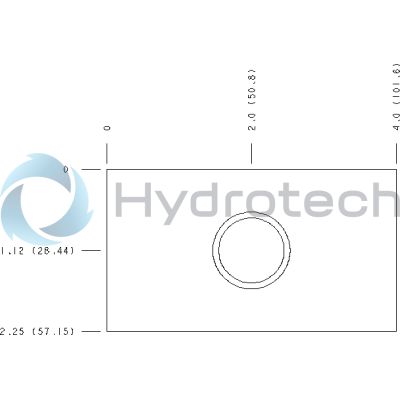

The Sun Hydraulics HED (Material Number: HED) is a line mount hydraulic manifold designed for high flow applications. It features a ninety-degree body with a high-capacity port 3 and a gauge port, allowing for efficient fluid management in hydraulic systems. The manifold includes two mounting holes with a diameter of 0.42 inches (10.7 mm) and is designed to be mounted through the designated holes. This model accommodates one open cavity, specifically the T-17A cavity, and utilizes 3/4 NPTF port sizes for optimal connectivity. Constructed from 6061-T651 aluminum, the HED manifold is known for its excellent corrosion resistance, making it suitable for various environments without the need for anodizing. This choice of material ensures durability while maintaining cost-effectiveness and ease of machining. The manifold is not anodized to avoid issues such as increased breakaway torque and reduced fatigue life, which can occur due to the brittle nature of anodized surfaces. The Sun Hydraulics HED manifold is intended for use in systems where maximum system pressure does not exceed 3000 psi (210 bar), ensuring safe operation within specified limits. Its robust design and material selection make it an ideal component in hydraulic circuits requiring reliable performance under moderate pressure conditions.
