SUN HYDRAULICS
H8N

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

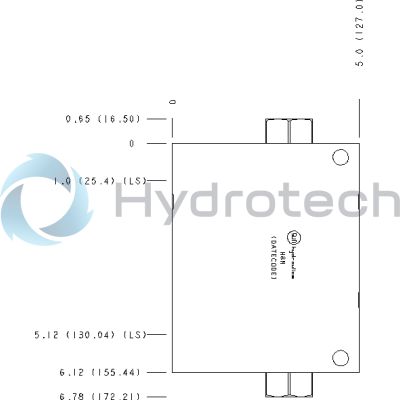

The Sun Hydraulics H8N (Material Number: H8N) is a line mount manifold designed for hydraulic systems requiring precise control and sequencing of two cylinders, with integrated reverse checks. This model features a body type specifically for line mounting, with no additional interface required. It has a mounting hole diameter of 0.42 inches (10.7 mm), and the holes are drilled through, totaling two in quantity. The manifold includes open cavities labeled as T-17A and is equipped with SAE 20 port sizes, making it compatible with standard hydraulic fittings. This manifold is constructed from 6061-T651 aluminum, known for its strength, affordability, machinability, availability in various shapes and sizes, and excellent corrosion resistance\u2014making it ideal for various hydraulic applications where weight and corrosion are concerns. Despite the common industry practice of anodizing aluminum to enhance corrosion resistance or provide a wear surface, Sun Hydraulics opts not to anodize this manifold due to considerations related to cost, logistics, consistency in appearance, inspection challenges, increased breakaway torque during maintenance, and reduced fatigue life. When using this manifold in hydraulic systems, it is crucial to consider the maximum system pressure. Due to its aluminum construction, the manifold should not be subjected to pressures exceeding 3000 psi (210 bar), regardless of port type or size specified. This ensures operational integrity and longevity in demanding environments where high flow control is necessary.
