SUN HYDRAULICS
H3N

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

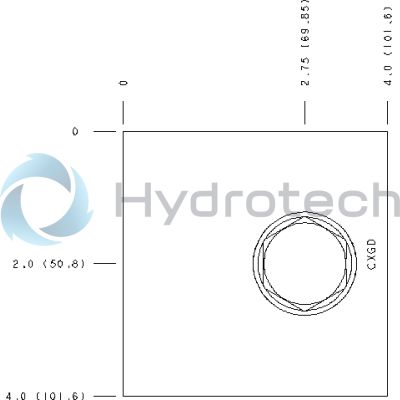

The Sun Hydraulics H3N (Material Number: H3N) is a robust line mount manifold designed to accommodate high flow hydraulic applications. This particular model features a through port 2 with a reverse flow check, ensuring efficient fluid control and preventing backflow in hydraulic systems. The manifold is constructed from 6061-T651 aluminum, known for its excellent corrosion resistance and durability, making it suitable for various environmental conditions. It includes two mounting holes threaded at .375-16 UNC 2B with a depth of .62 inches, allowing secure installation in hydraulic setups. The H3N model is designed with one open cavity utilizing the T-17A cavity type and accommodates SAE 20 port size connections, which are standard in many hydraulic systems. This configuration ensures compatibility with a wide range of hydraulic components and simplifies system integration. Additionally, the manifold's design supports easy maintenance and inspection due to its straightforward layout and accessible cavity. It is important to note that while the manifold is capable of handling substantial flow rates, it should not be subjected to pressures exceeding 3000 psi (210 bar) due to the material constraints of aluminum. This limitation should be carefully considered during system design to ensure optimal performance and longevity of the manifold. Overall, the Sun Hydraulics H3N manifold provides reliable performance in controlling fluid dynamics within hydraulic systems, offering ease of integration with its standard port sizes and robust construction tailored for high-flow applications.
