SUN HYDRAULICS
FXEAXBN/AP
$396.20 USD
Tags:
- SUN HYDRAULICS
- Material:FXEAXBN/AP
- Model:FXEA-XBN/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

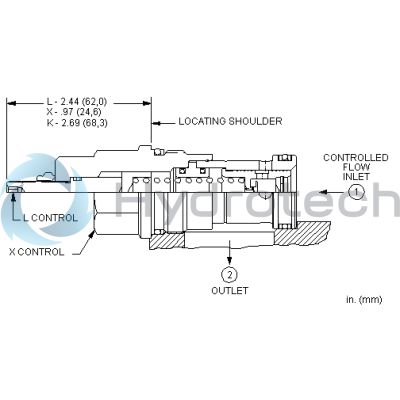

The Sun Hydraulics FXEAXBN/AP (FXEAXBN/AP) is a fixed-orifice, pressure-compensated flow control valve designed to provide precise flow regulation for both meter-in and meter-out applications, even in environments with wide pressure fluctuations. This model is factory-set to a user-specified flow rating, with accuracy maintained within 10% of the requested setting. It features a sharp-edged orifice design that minimizes variations in flow due to changes in fluid viscosity. The FXEAXBN/AP also includes a tuneable control option allowing for a 25% variation from the nominal factory preset flow, adjusted by turning the screw clockwise to increase the flow rate. This corrosion-resistant cartridge valve is constructed with external stainless steel components, suitable for use in corrosive environments. The valve incorporates Sun's floating style construction, which reduces the risk of internal parts binding due to excessive installation torque or machining variations. The FXEAXBN/AP is compatible with T16A cavities and belongs to Series 3, offering a capacity of up to 25 gallons per minute (95 liters per minute) and can operate under pressures up to 5000 psi (350 bar). Physically and functionally interchangeable with other 2-port flow control cartridges of the same frame size, this model offers flexibility in installation despite potential variations in cartridge extension dimensions from the mounting surface. The hex size for installation is 1-1/4 inches (31.8 mm), requiring an installation torque between 150-160 lbf ft (203-217 Nm). For adjustments, an internal hex size of 5/32 inches (4 mm) is utilized, while locknut adjustments require a hex size of 9/16 inches (15 mm) and torque between 80-90 lbf in (9-10 Nm). The FXEAXBN/AP weighs approximately 1.40 lbs (0.65 kg) and utilizes Viton seals as part of its cartridge seal kit configuration.
The Sun Hydraulics FXEAXBN/AP (FXEAXBN/AP) is a fixed-orifice, pressure-compensated flow control valve designed to provide precise flow regulation for both meter-in and meter-out applications, even in environments with wide pressure fluctuations. This model is factory-set to a user-specified flow rating, with accuracy maintained within 10% of the requested setting. It features a sharp-edged orifice design that minimizes variations in flow due to changes in fluid viscosity. The FXEAXBN/AP also includes a tuneable control option allowing for a 25% variation from the nominal factory preset flow, adjusted by turning the screw clockwise to increase the flow rate. This corrosion-resistant cartridge valve is constructed with external stainless steel components, suitable for use in corrosive environments. The valve incorporates Sun's floating style construction, which reduces the risk of internal parts binding due to excessive installation torque or machining variations. The FXEAXBN/AP is compatible with T16A cavities and belongs to Series 3, offering a capacity of up to 25 gallons per minute (95 liters per minute) and can operate under pressures up to 5000 psi (350 bar). Physically and functionally interchangeable with other 2-port flow control cartridges of the same frame size, this model offers flexibility in installation despite potential variations in cartridge extension dimensions from the mounting surface. The hex size for installation is 1-1/4 inches (31.8 mm), requiring an installation torque between 150-160 lbf ft (203-217 Nm). For adjustments, an internal hex size of 5/32 inches (4 mm) is utilized, while locknut adjustments require a hex size of 9/16 inches (15 mm) and torque between 80-90 lbf in (9-10 Nm). The FXEAXBN/AP weighs approximately 1.40 lbs (0.65 kg) and utilizes Viton seals as part of its cartridge seal kit configuration.
Fixed-orifice, pressure-compensated flow controls provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. The flow setting is specified by the user and is set at the factory.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- The tuneable control option provides +/- 25% variation from the nominal factory pre-set flow. Turn the adjustment clockwise to increase.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.40 lb0,65 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
