SUN HYDRAULICS
FSFAXAV

$835.70 USD

Tags:

SUN HYDRAULICS
Material:FSFAXAV
Model:FSFA-XAV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FSFAXAV (FSFAXAV) is a closed-center flow divider/combiner designed for precise hydraulic control. This sliding-spool, pressure-compensated device efficiently splits flow in one direction and combines it in the opposite direction, making it ideal for applications requiring bidirectional operation of multiple cylinders or hydraulic motors. It features interchangeable cartridges with consistent flow paths and cavity dimensions for a given frame size, ensuring flexibility in various setups. The FSFAXAV operates with a maximum pressure of 5000 psi (350 bar) and supports a capacity range of 12 to 60 gpm (45 to 240 L/min). The valve's divisional accuracy varies with the input flow: at minimum input flow, it maintains an accuracy of \u00b14.5%, while at maximum input flow, the accuracy improves to \u00b12.5%. The pressure drop across the valve is minimal\u201430 psi (2 bar) at minimum rated input flow and 350 psi (24 bar) at maximum rated input flow\u2014ensuring efficient operation without significant energy loss. It incorporates Sun's floating style construction to reduce potential binding from installation torque or machining variations. In dividing mode, the leg with the greatest load receives more flow, while in combining mode, the leg with the lowest load receives more. This characteristic requires careful consideration when used in systems with rigid mechanisms or synchronized motion requirements to prevent cavitation or lockup. The FSFAXAV is not suitable for synchronizing two cylinders hydraulically but offers static error correction through its synchronizing feature when one port is blocked. This feature allows compensating flow between other ports, aiding actuators that bottom out during their strokes. Overall, this model provides robust performance for hydraulic systems needing precise control over multiple actuators while accommodating variances in load and operating conditions.

Description

Closed-center flow divider/combiners are sliding-spool, pressure-compensated devices used to split flow in one direction and combine flow in the opposite direction. These valves may be used to accurately control two or more cylinders or hydraulic motors where bidirectional operation is required.

All flow divider and divider/combiner cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size).
Operating characteristics cause the leg of the circuit with the greatest load to receive the higher percentage of flow in dividing mode. If a rigid mechanism is used to tie actuators together, the lead actuator may pull the lagging actuator and cause it to cavitate.
In combining mode, compensating characteristics will cause the leg of the circuit with the lowest load to receive the higher percentage of flow. If a synchronization feature is not included, an additive accuracy error will be experienced with each full stroke of the actuator.
In applications involving rigid mechanisms between multiple actuators, operating inaccuracy will cause the eventual lock-up of the system. If the mechanical structure is not designed to allow for the operating inaccuracy inherent in the valve, damage may occur.
In motor circuits, rigid frames or mechanisms that tie motors together, and/or complete mechanical synchronized motion of the output shaft of the motors, either by wheels to the pavement or sprockets to conveyors, will contribute to cavitation, lock-up and/or pressure intensification.
Variations in speed and lock-up can be attributed to differences in motor displacement, motor leakage, wheel diameter variance and friction of wheels on the driving surface.
Extreme pressure intensification can occur on multiple wheel drive vehicles.
Flow between ports is limited to spool leakage. This does not provide leak proof holding capability, but can be useful in minimizing cross flow and drift.
Divisional and combining accuracy are equal.
Below the minimum flow rating there is not enough flow for the valve to modulate. It is effectively a tee. If flow starts at zero and rises, there will be no dividing or combining control until the flow reaches the minimum rating.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

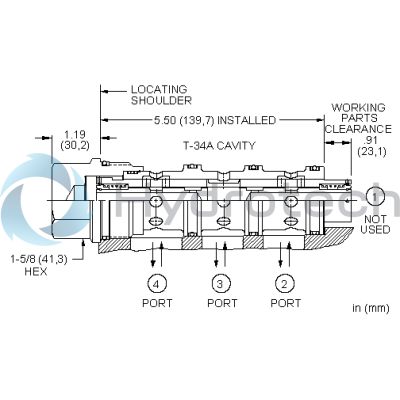

Cavity	T-34A
Series	4
Capacity	12 - 60 gpm45 - 240 L/min.
Maximum Operating Pressure	5000 psi350 bar
Divisional Accuracy at Minimum Input Flow	50% ±4.5%50% ±4.5%
Divisional Accuracy at Max Input Flow	50% ±2.5%50% ±2.5%
Pressure Drop at Minimum Rated Input Flow	30 psi2 bar
Pressure Drop at Maximum Rated Input Flow	350 psi24 bar
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft475 - 508 Nm
Model Weight	2.80 lb1,30 kg
Seal kit - Cartridge	Viton: 990-034-006

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I synchronize 2 cylinders with Sun's divider-combiner?	No. Synchronizing 2 cylinders hydraulically is a real problem. A real problem is one which has no solution. Our valves with the synchronizing feature don't synchronize, they provide an error correction at each end of the stroke when the leading cylinder bottoms out. Another means of error correction is cross-port reliefs.
How has Sun solved the hook breaking problem?	We eliminated the hooks. We have a 1 piece spool.
Most of Sun's divider-combiners will do better than the published specs, won't they?	No. Almost all of the error percentage we publish is due to flow forces. Even with a mechanically perfect valve you would see most of the variation.
Most of the dividing-combining inaccuracies will average out, won't they?	Absolutely not. The bell curve does not apply here. In the dividing mode the high pressure leg gets the higher flow and in the combining mode the high pressure leg is the lower flow......every time. The inaccuracies are always there and they accumulate. The high pressure leg goes up farther and comes down less, every time.
What is the synchronizing feature?	It is a static error correction feature. When any one of the 3 ports of a divider/combiner with the synchronizing feature is blocked, flow is possible between the other 2 ports. This "synchronizing" flow is called out in the performance chart and is pressure compensated.When the leading actuator comes to a stop, the other actuator can catch up at a rate determined by the "synchronizing" flow.When the actuators are stopped mid-stroke (port 3 blocked), oil can flow from the high pressure leg to the low pressure leg at a rate determined by the "synchronizing" flow.The "synchronizing" flow does not exist until one port is blocked.The "synchronizing" feature is most effective on applications where the actuators bottom out at at least one end of their strokes.
Why am I getting a higher inaccuracy than Sun claims?	We test every cartridge in 16 modes. High pressure, low pressure, high flow, low flow, divide, and combine.....both legs. What you are probably seeing is the error that occurs as the flow is ramping up to the minimum rated flow. Below the minimum rated flow the valve does not see enough flow to operate correctly.
Why does Sun use 2 slip orifices?	The divider/combiner is an FSDH XAN. Input flow is 15 gpm (57 L/min.). This example depicts orifices that slip about 3 gpm (12 L/min.) at 3000 psi (210 bar) pressure differential between legs. The slip conditions between the 2 examples are the same...please be assured of this. Each orifice on the right is twice the area of the orifice on the left.The pressure drop through the left example is 200 psi (14 bar), the drop through the right example is 130 psi (9 bar).
How big do my slip orifices have to be?	With a typical steered axle application the outside wheels go 15% to 20% farther than the inside wheels. As to how big your slip orifices need to be, there is no correct answer and you are the one that needs to make the compromise. If they are too big you will not have the traction you need at low speeds and if they are too small you will not be able to turn at higher speeds.
