SUN HYDRAULICS
FSCDXCN

$114.60 USD

Tags:

SUN HYDRAULICS
Material:FSCDXCN
Model:FSCD-XCN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FSCDXCN (Material Number: FSCDXCN) is a sliding spool, pressure-compensated flow divider designed to allocate oil flow to two different branches of a hydraulic circuit in a specified ratio. This valve is particularly suitable for applications involving unidirectional hydraulic motors and hydraulic cylinders where flow division is required in one direction only, as well as multiple circuits serviced from a single pump supply. It features interchangeable cartridges, maintaining the same flow path and cavity size for a given frame size. The flow divider's operating characteristics ensure that the circuit leg with the greatest load receives a higher percentage of flow during dividing mode. However, caution is advised when using rigid mechanisms to connect actuators, as this can lead to cavitation or system lockup due to operational inaccuracies. The FSCDXCN model operates within a capacity range of 1.5 to 8 gpm (6 to 30 L/min) and supports a maximum operating pressure of 5000 psi (350 bar). It provides divisional accuracy rates of 6.5% at minimum input flow and 3.5% at maximum input flow. The pressure drop across the valve varies from 30 psi (2 bar) at minimum rated input flow to 250 psi (18 bar) at maximum rated input flow. This model incorporates Sun's floating style construction, minimizing potential internal part binding due to excessive installation torque or machining variations. It's crucial to note that this valve functions solely as a divider and attempts to reverse flow through it are not recommended. Dividers with unequal ratios deliver higher flows at port 4, and below the minimum flow rating, the valve acts merely as a tee without dividing control until reaching its minimum rating threshold.

Description

Flow dividers are sliding-spool, pressure-compensated devices used to split oil flow to two different branches of a circuit in a designated ratio. These valves are suitable for applications that use the following: unidirectional hydraulic motors, hydraulic cylinders where flow division in one direction only is required, and multiple circuits that are serviced from one pump supply.

All flow divider and divider/combiner cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size).
Operating characteristics cause the leg of the circuit with the greatest load to receive the higher percentage of flow in dividing mode. If a rigid mechanism is used to tie actuators together, the lead actuator may pull the lagging actuator and cause it to cavitate.
In applications involving rigid mechanisms between multiple actuators, operating inaccuracy will cause the eventual lock-up of the system. If the mechanical structure is not designed to allow for the operating inaccuracy inherent in the valve, damage may occur.
In motor circuits, rigid frames or mechanisms that tie motors together, and/or complete mechanical synchronized motion of the output shaft of the motors, either by wheels to the pavement or sprockets to conveyors, will contribute to cavitation, lock-up and/or pressure intensification.
Variations in speed and lock-up can be attributed to differences in motor displacement, motor leakage, wheel diameter variance and friction of wheels on the driving surface.
This valve is a divider only; any attempt to flow backwards through the valve is not advised.
Dividers with unequal ratios have the higher flow at port 4.
Below the minimum flow rating there is not enough flow for the valve to modulate. It is effectively a tee. If flow starts at zero and rises, there will be no dividing control until the flow reaches the minimum rating.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

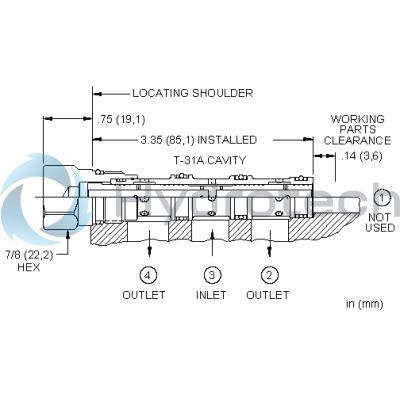

Cavity	T-31A
Series	1
Capacity	1.5 - 8 gpm6 - 30 L/min.
Maximum Operating Pressure	5000 psi350 bar
Divisional Accuracy at Minimum Input Flow	±6.5%±6.5%
Divisional Accuracy at Max Input Flow	±3.5%±3.5%
Pressure Drop at Minimum Rated Input Flow	30 psi2 bar
Pressure Drop at Maximum Rated Input Flow	250 psi18 bar
Rated Input Flow with 50/50 Split	1.5 - 8 gpm6 - 30 L/min.
Rated Input Flow with 40/60 Split	1.4 - 7 gpm5,3 - 26,5 L/min.
Rated Input Flow with 33/67 Split	1.2 - 6 gpm4,5 - 22,7 L/min.
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	30 - 35 lbf ft41 - 47 Nm
Model Weight	.60 lb0,30 kg
Seal kit - Cartridge	Viton: 990-031-006

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I synchronize 2 cylinders with Sun's divider-combiner?	No. Synchronizing 2 cylinders hydraulically is a real problem. A real problem is one which has no solution. Our valves with the synchronizing feature don't synchronize, they provide an error correction at each end of the stroke when the leading cylinder bottoms out. Another means of error correction is cross-port reliefs.
How has Sun solved the hook breaking problem?	We eliminated the hooks. We have a 1 piece spool.
Most of Sun's divider-combiners will do better than the published specs, won't they?	No. Almost all of the error percentage we publish is due to flow forces. Even with a mechanically perfect valve you would see most of the variation.
Most of the dividing-combining inaccuracies will average out, won't they?	Absolutely not. The bell curve does not apply here. In the dividing mode the high pressure leg gets the higher flow and in the combining mode the high pressure leg is the lower flow......every time. The inaccuracies are always there and they accumulate. The high pressure leg goes up farther and comes down less, every time.
What is the synchronizing feature?	It is a static error correction feature. When any one of the 3 ports of a divider/combiner with the synchronizing feature is blocked, flow is possible between the other 2 ports. This "synchronizing" flow is called out in the performance chart and is pressure compensated.When the leading actuator comes to a stop, the other actuator can catch up at a rate determined by the "synchronizing" flow.When the actuators are stopped mid-stroke (port 3 blocked), oil can flow from the high pressure leg to the low pressure leg at a rate determined by the "synchronizing" flow.The "synchronizing" flow does not exist until one port is blocked.The "synchronizing" feature is most effective on applications where the actuators bottom out at at least one end of their strokes.
Why am I getting a higher inaccuracy than Sun claims?	We test every cartridge in 16 modes. High pressure, low pressure, high flow, low flow, divide, and combine.....both legs. What you are probably seeing is the error that occurs as the flow is ramping up to the minimum rated flow. Below the minimum rated flow the valve does not see enough flow to operate correctly.
What is a priority flow divider?	It is another name for what we call a priority flow control. We don't call it a divider because it doesn't start dividing until there is enough flow to satisfy the priority flow.
Why does Sun use 2 slip orifices?	The divider/combiner is an FSDH XAN. Input flow is 15 gpm (57 L/min.). This example depicts orifices that slip about 3 gpm (12 L/min.) at 3000 psi (210 bar) pressure differential between legs. The slip conditions between the 2 examples are the same...please be assured of this. Each orifice on the right is twice the area of the orifice on the left.The pressure drop through the left example is 200 psi (14 bar), the drop through the right example is 130 psi (9 bar).
How big do my slip orifices have to be?	With a typical steered axle application the outside wheels go 15% to 20% farther than the inside wheels. As to how big your slip orifices need to be, there is no correct answer and you are the one that needs to make the compromise. If they are too big you will not have the traction you need at low speeds and if they are too small you will not be able to turn at higher speeds.
