Model:FRDB-LAN
Summary:Cartridge

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FRDBLAN (Material Number: FRDBLAN) is a specialized 2-port restrictive flow control valve designed to fit into a 3-port cavity, specifically the T-2A cavity. This model is engineered for applications requiring precise control of hydraulic fluid flow, with a factory-set flow rating within 10% of the specified setting. The valve can handle a maximum pressure of 5000 psi (350 bar) and an input flow up to 30 gpm (120 L/min), while its capacity is rated at 12 gpm (45 L/min). The sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity, ensuring consistent performance across different conditions. An optional tunable adjustment control allows for up to a 25% variation from the nominal factory preset flow, which can be adjusted using an internal hex screw; turning clockwise increases the flow. The valve also features Sun's floating style construction, which reduces the risk of internal parts binding due to excessive installation torque or machining variations within the cavity/cartridge. Installation requires a torque of 45-50 lbf ft (61-68 Nm) and utilizes a valve hex size of 1-1/8 inches (28.6 mm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), and the locknut requires a torque of 80-90 lbf in (9-10 Nm). The FRDBLAN model weighs approximately .40 lb (0.20 kg) and comes with a Viton seal kit for reliable sealing in demanding environments. This valve is ideal for applications where precise hydraulic flow control is essential, offering robust performance and adaptability in various hydraulic systems.

Description

This valve is a 2 port restrictive flow control valve that fits into a 3 port cavity. There is no connection to port 2 of the cavity.

Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
The sharp-edged orifice design minimizes flow variations due to viscosity changes.
A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

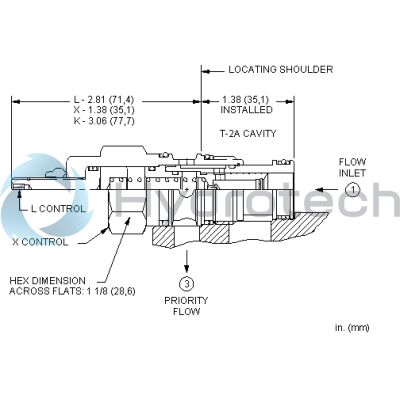

Cavity	T-2A
Series	2
Capacity	12 gpm45 L/min.
Maximum Operating Pressure	5000 psi350 bar
Maximum Input Flow	30 gpm120 L/min.
Valve Hex Size	1 1/8 in.28,6 mm
Valve Installation Torque	45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.40 lb0,20 kg
Seal kit - Cartridge	Viton: 990-202-006

Show FAQ

What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
