SUN HYDRAULICS
FQCAXAV
$57.30 USD
Tags:
- SUN HYDRAULICS
- Material:FQCAXAV
- Model:FQCA-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FQCAXAV (FQCAXAV) is a flow fuse cartridge designed to maintain the position of a hydraulic actuator in the event of a hose or line break. This valve allows flow to and from the actuator but closes instantly if the flow from the actuator exceeds its set limit, ensuring safety and control in hydraulic systems. It's important for users to specify a flow rating when ordering, as factory-set flow ratings are within 10% of the requested setting. The valve closes when flow from port 1 to port 2 exceeds its setting and resets when pressures at both ports equalize. The recommended flow setting should be at least 25% above maximum normal system flow to prevent false tripping due to transient flows. This spool-type valve may exhibit some leakage, potentially causing minor actuator drift. It incorporates Sun's floating style construction, minimizing the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The FQCAXAV fits into a T-13A cavity, belongs to Series 1, and has a capacity of 6 gpm (23 L/min) with a maximum operating pressure of 5000 psi (350 bar). Maximum valve leakage is specified at 2 in\u00b3/min (30 cc/min) at 1000 psi (70 bar). The valve has a hex size of 7/8 inch (22.2 mm) and requires an installation torque between 30-35 lbf ft (41-47 Nm). Weighing just .20 lb (0.10 kg), it includes Viton seal kits for optimal performance. This product is not intended for oil loss prevention or fire protection but rather ensures controlled movement in hydraulic systems during hose failure scenarios. Proper selection and setting adjustments are crucial for optimal performance without false tripping during normal operations.
The Sun Hydraulics FQCAXAV (FQCAXAV) is a flow fuse cartridge designed to maintain the position of a hydraulic actuator in the event of a hose or line break. This valve allows flow to and from the actuator but closes instantly if the flow from the actuator exceeds its set limit, ensuring safety and control in hydraulic systems. It's important for users to specify a flow rating when ordering, as factory-set flow ratings are within 10% of the requested setting. The valve closes when flow from port 1 to port 2 exceeds its setting and resets when pressures at both ports equalize. The recommended flow setting should be at least 25% above maximum normal system flow to prevent false tripping due to transient flows. This spool-type valve may exhibit some leakage, potentially causing minor actuator drift. It incorporates Sun's floating style construction, minimizing the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The FQCAXAV fits into a T-13A cavity, belongs to Series 1, and has a capacity of 6 gpm (23 L/min) with a maximum operating pressure of 5000 psi (350 bar). Maximum valve leakage is specified at 2 in\u00b3/min (30 cc/min) at 1000 psi (70 bar). The valve has a hex size of 7/8 inch (22.2 mm) and requires an installation torque between 30-35 lbf ft (41-47 Nm). Weighing just .20 lb (0.10 kg), it includes Viton seal kits for optimal performance. This product is not intended for oil loss prevention or fire protection but rather ensures controlled movement in hydraulic systems during hose failure scenarios. Proper selection and setting adjustments are crucial for optimal performance without false tripping during normal operations.
Flow fuse cartridges are used to maintain the position of a hydraulic actuator in the event of a hose or line break. The valve allows flow to and from the actuator but closes instantly if flow from the actuator exceeds the setting of the valve. NOTE: Because the valve responds so rapidly, it is sensitive to any transient flow above the valve setting.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Valve closes when flow from port 1 to port 2 exceeds the setting of the valve. Valve resets when pressures at port 1 and port 2 are equal.
- Flow setting should be at least 25% above maximum normal system flow. Customer must specify flow when ordering valve.
- These are spool type valves, therefore there is leakage. Some actuator drift may occur.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

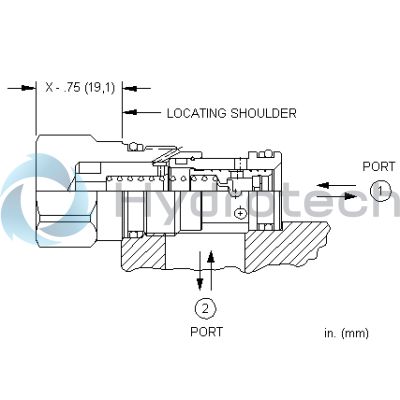

| Cavity | T-13A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
