SUN HYDRAULICS
FDCBLBN/LH

$155.00 USD

Tags:

SUN HYDRAULICS
Material:FDCBLBN/LH
Model:FDCB-LBN/LH
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FDCBLBN/LH (Material Number: FDCBLBN/LH) is a versatile, fully adjustable, pressure-compensated flow control cartridge designed for precise flow regulation in hydraulic systems. It is suitable for both meter-in and meter-out applications, particularly where there are significant pressure fluctuations. This model features an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. The flow control is infinitely adjustable from nearly closed to the maximum flow capacity of 12 gpm (45 L/min), ensuring flexibility in various operational conditions. The FDCBLBN/LH model incorporates a balanced adjustment mechanism that facilitates easy adjustments even under high-pressure scenarios, up to a maximum operating pressure of 5000 psi (350 bar). Its sharp-edged orifice design minimizes flow variations caused by changes in fluid viscosity, providing reliable performance across different conditions. The cartridge's minimum leakage rate is .2 gpm (0.8 L/min) when the adjustment mechanism is set to the shut-off position. This product's design includes interchangeable 2-port flow control cartridges, maintaining the same flow path and cavity dimensions for a given frame size while allowing for variation in cartridge extension dimensions from the mounting surface. It requires an installation torque of 45-50 lbf ft (61-68 Nm) and features specific hex sizes for valve and locknut adjustments. Cartridges with EPDM seals are compatible with systems using phosphate ester fluids but should not be exposed to petroleum-based fluids, greases, or lubricants as they will damage the seals. The FDCBLBN/LH model weighs .60 lb (0.30 kg) and fits into a T5A cavity series 2 configuration.

Description

Fully adjustable, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.

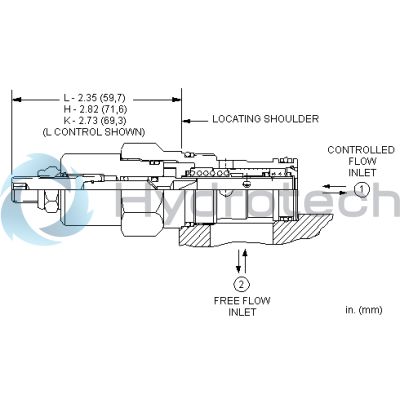

All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
A balanced adjustment mechanism allows for easy adjustment even at high pressures.
The sharp-edged orifice design minimizes flow variations due to viscosity changes.
Minimum leakage is .2 gpm (0,8 L/min) when the adjustment mechanism is turned to the shut-off position.
Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.

Cavity	T-5A
Series	2
Capacity	12 gpm45 L/min.
Maximum Operating Pressure	5000 psi350 bar
Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open	55
Valve Hex Size	1 1/8 in.28,6 mm
Valve Installation Torque	45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.60 lb0,30 kg
Seal kit - Cartridge	Viton: 990-203-006

Show FAQ

What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
