SUN HYDRAULICS
FLOW CTRL CART
FDCBLAV
$129.50 USD
Tags:
- SUN HYDRAULICS
- Material:FDCBLAV
- Model:FDCB-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FDCBLAV (FDCBLAV) is a fully adjustable, pressure-compensated flow control valve with reverse flow check, designed for precise flow regulation in meter-in or meter-out applications. It is particularly effective in systems where there are significant pressure fluctuations. This model allows for infinite adjustment from nearly closed to maximum flow, ensuring optimal performance across a wide range of conditions. The valve includes an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1, enhancing its versatility and functionality. All 2-port flow control cartridges from this series are interchangeable in terms of flow path and cavity size, although the dimensions of the cartridge extension may vary. The FDCBLAV features a balanced adjustment mechanism that facilitates easy adjustments even under high-pressure conditions. Its sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity, making it reliable under varying operational circumstances. The valve has a minimum leakage rate of 0.2 gpm (0.8 L/min) when fully closed and can handle a capacity of up to 12 gpm (45 L/min) at a maximum operating pressure of 5000 psi (350 bar). It also includes EPDM seals suitable for systems using phosphate ester fluids; however, these seals are not compatible with petroleum-based fluids or lubricants. The installation specifications include a T5A cavity, series 2 designation, and specific torque requirements for both the valve installation and locknut. With its robust construction and precise control capabilities, the Sun Hydraulics FDCBLAV is ideal for applications requiring reliable flow management under fluctuating pressures while maintaining ease of use through its user-friendly adjustment features.
The Sun Hydraulics FDCBLAV (FDCBLAV) is a fully adjustable, pressure-compensated flow control valve with reverse flow check, designed for precise flow regulation in meter-in or meter-out applications. It is particularly effective in systems where there are significant pressure fluctuations. This model allows for infinite adjustment from nearly closed to maximum flow, ensuring optimal performance across a wide range of conditions. The valve includes an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1, enhancing its versatility and functionality. All 2-port flow control cartridges from this series are interchangeable in terms of flow path and cavity size, although the dimensions of the cartridge extension may vary. The FDCBLAV features a balanced adjustment mechanism that facilitates easy adjustments even under high-pressure conditions. Its sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity, making it reliable under varying operational circumstances. The valve has a minimum leakage rate of 0.2 gpm (0.8 L/min) when fully closed and can handle a capacity of up to 12 gpm (45 L/min) at a maximum operating pressure of 5000 psi (350 bar). It also includes EPDM seals suitable for systems using phosphate ester fluids; however, these seals are not compatible with petroleum-based fluids or lubricants. The installation specifications include a T5A cavity, series 2 designation, and specific torque requirements for both the valve installation and locknut. With its robust construction and precise control capabilities, the Sun Hydraulics FDCBLAV is ideal for applications requiring reliable flow management under fluctuating pressures while maintaining ease of use through its user-friendly adjustment features.

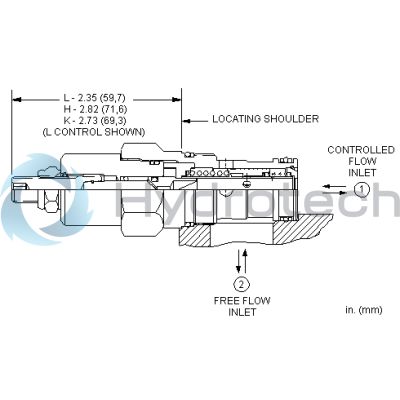

Fully adjustable, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Minimum leakage is .2 gpm (0,8 L/min) when the adjustment mechanism is turned to the shut-off position.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
