SUN HYDRAULICS
FCEBLAV
$222.40 USD
Tags:
- SUN HYDRAULICS
- Material:FCEBLAV
- Model:FCEB-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FCEBLAV (Material Number: FCEBLAV) is a fixed-orifice, pressure-compensated flow control valve with an integrated reverse flow check, designed for precise flow regulation in meter-in or meter-out applications. It is particularly effective in scenarios with wide pressure fluctuations. The valve features a high-capacity check valve that allows unrestricted flow from port 2 to port 1. Users must specify their desired flow rating, which is factory-set within a 10% range of the requested value. The sharp-edged orifice design minimizes variations due to viscosity changes, ensuring consistent performance. This model offers interchangeable functionality across all 2-port flow control cartridges of the same frame size, although extension dimensions may vary. It includes a tunable control option allowing for a \u00b122% variation from the nominal factory preset flow, adjustable by turning the screw clockwise to increase the setting. Built with corrosion-resistant materials, it is suitable for use in corrosive environments and can be customized with external stainless steel or zinc-nickel plated components. The FCEBLAV incorporates Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. With a capacity of 25 gpm (95 L/min) and maximum operating pressure of 5000 psi (350 bar), it fits into T-16A cavities and requires specific installation torques for optimal performance. The valve weighs approximately 1 lb (0.45 kg) and uses a Viton seal kit (990016006). This product is ideal for those seeking reliable and accurate hydraulic flow control solutions without compromising on durability or efficiency under varying conditions.
The Sun Hydraulics FCEBLAV (Material Number: FCEBLAV) is a fixed-orifice, pressure-compensated flow control valve with an integrated reverse flow check, designed for precise flow regulation in meter-in or meter-out applications. It is particularly effective in scenarios with wide pressure fluctuations. The valve features a high-capacity check valve that allows unrestricted flow from port 2 to port 1. Users must specify their desired flow rating, which is factory-set within a 10% range of the requested value. The sharp-edged orifice design minimizes variations due to viscosity changes, ensuring consistent performance. This model offers interchangeable functionality across all 2-port flow control cartridges of the same frame size, although extension dimensions may vary. It includes a tunable control option allowing for a \u00b122% variation from the nominal factory preset flow, adjustable by turning the screw clockwise to increase the setting. Built with corrosion-resistant materials, it is suitable for use in corrosive environments and can be customized with external stainless steel or zinc-nickel plated components. The FCEBLAV incorporates Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. With a capacity of 25 gpm (95 L/min) and maximum operating pressure of 5000 psi (350 bar), it fits into T-16A cavities and requires specific installation torques for optimal performance. The valve weighs approximately 1 lb (0.45 kg) and uses a Viton seal kit (990016006). This product is ideal for those seeking reliable and accurate hydraulic flow control solutions without compromising on durability or efficiency under varying conditions.

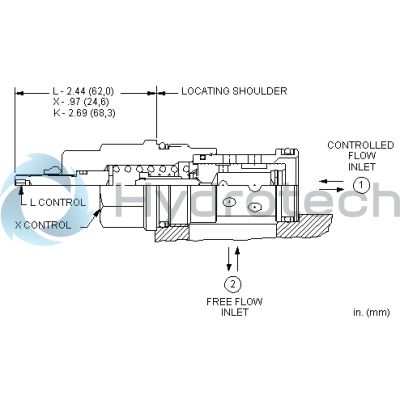

Fixed-orifice, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. The flow setting is specified by the user and is set at the factory.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- The tuneable control option provides +/- 22% variation from the nominal factory pre-set flow. Turn the adjustment clockwise to increase.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.00 lb0,45 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
