SUN HYDRAULICS
DSIOXCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

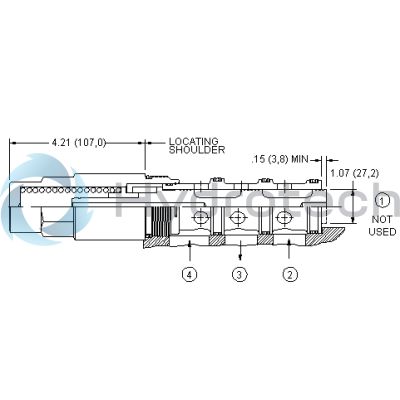

The Sun Hydraulics DSIOXCV (DSIOXCV) is a spring-offset, high-side shuttle cartridge valve designed for hydraulic systems requiring efficient flow control and pressure management. This 2-position valve features a normal offset position that connects the common port (port 3) to work port 4 while blocking work port 2. When the pressure at port 2 surpasses that of port 4, the valve shifts to connect the common port to port 2, subsequently blocking port 4. Although it fits into a 4-port cavity, the nose port (port 1) remains unused. The valve incorporates Sun's floating style construction, which minimizes internal part binding due to excessive installation torque or variations in cavity/cartridge machining. This model is built for a T-34A cavity and is part of Series 4, offering a substantial capacity of up to 120 gpm (480 L/min). It can handle a maximum operating pressure of up to 5000 psi (350 bar), making it suitable for high-pressure applications. The valve's hex size is approximately 1-5/8 inches (41.3 mm), and it requires an installation torque ranging from 350 to 375 lbf ft (475 to 508 Nm). Weighing in at about 2.90 lb (1.30 kg), the DSIOXCV comes with an optional Viton seal kit under cartridge number 990034006. The Sun Hydraulics DSIOXCV is ideal for applications where precise control over hydraulic flow and pressure is crucial, providing reliable performance in demanding environments. Its direct acting design ensures fast response times while maintaining stability and robustness, making it an excellent choice for systems requiring quick adjustments and minimal maintenance.
