SUN HYDRAULICS
DSIHXGN
$670.40 USD
Tags:
- SUN HYDRAULICS
- Material:DSIHXGN
- Model:DSIH-XGN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSIHXGN (DSIHXGN) is a lowside hot oil shuttle cartridge designed to efficiently divert hot oil from the low-pressure side of a closed-loop system. This component is engineered to spring-center to an all-ports-blocked position when both work ports, 2 and 4, are at equal pressures. When one work port experiences higher pressure, the valve connects the opposite work port to the common port, 3. The spool's hydraulic stop feature eliminates mechanical impact, reducing potential internal damage and allowing confirmation of the hot oil relief setting with the transmission in neutral. The valve's floating style construction minimizes binding risks due to excessive installation torque or machining variations. Suitable for a T-34A cavity and part of Series 4, this shuttle cartridge offers a capacity of 80 gpm (320 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). It has a pilot flow rate of 46 in\u00b3/min (0.75 L/min), with installation torque ranging from 350 to 375 lbf ft (475 to 508 Nm). The model weighs approximately 2.90 lb (1.30 kg) and uses Viton seal kits for optimal performance.
The Sun Hydraulics DSIHXGN (DSIHXGN) is a lowside hot oil shuttle cartridge designed to efficiently divert hot oil from the low-pressure side of a closed-loop system. This component is engineered to spring-center to an all-ports-blocked position when both work ports, 2 and 4, are at equal pressures. When one work port experiences higher pressure, the valve connects the opposite work port to the common port, 3. The spool's hydraulic stop feature eliminates mechanical impact, reducing potential internal damage and allowing confirmation of the hot oil relief setting with the transmission in neutral. The valve's floating style construction minimizes binding risks due to excessive installation torque or machining variations. Suitable for a T-34A cavity and part of Series 4, this shuttle cartridge offers a capacity of 80 gpm (320 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). It has a pilot flow rate of 46 in\u00b3/min (0.75 L/min), with installation torque ranging from 350 to 375 lbf ft (475 to 508 Nm). The model weighs approximately 2.90 lb (1.30 kg) and uses Viton seal kits for optimal performance.

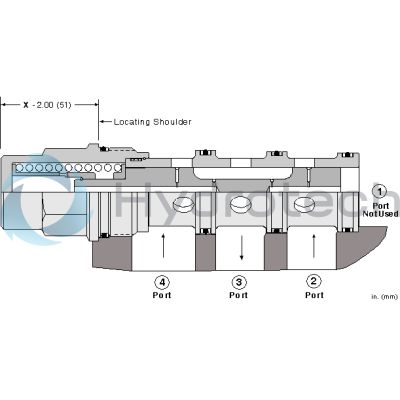

Low-side (hot oil) shuttle cartridges allow hot oil to be diverted from the low pressure side of a closed loop system. When both work ports (ports 2 and 4) are at equal pressures the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure the opposite work port is connected to the common port (port 3).
- The spool incorporates a hydraulic stop that eliminates mechanical impact and therefore the potential for internal damage.
- The hydraulic stop results in a small pilot flow from the high side work port (port 2 or 4) to the common port (port 3).
- A unique feature due to the hydraulic stop is that the hot oil relief setting can be confirmed with the transmission in neutral.
- NOTE: Low shift values can potentially result in charge pump pressure alone inadvertently shifting the valve. Use care when selecting shift pressure.
- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-34A |
| Series | 4 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Pilot Flow | 46 in³/min.0,75 L/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft475 - 508 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-034-006 |
