SUN HYDRAULICS
DSEOXCV
$193.30 USD
Tags:
- SUN HYDRAULICS
- Material:DSEOXCV
- Model:DSEO-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSEOXCV (DSEOXCV) is a spring-offset, high-side shuttle cartridge valve designed for efficient fluid control in hydraulic systems. This 2-position valve features a normal offset position that connects the common port (port 3) to work port 4 while blocking work port 2. When the pressure at port 2 exceeds that of port 4, the cartridge shifts to connect the common port to port 2, subsequently blocking port 4. Despite being designed for a 4-port cavity, the nose port (port 1) remains unused. The valve incorporates Sun's floating style construction to reduce the risk of internal parts binding due to over-tightening or machining variations in cavity/cartridge installations. The DSEOXCV model fits into a T-32A cavity and belongs to Series 2 with a flow capacity of up to 30 gallons per minute (120 liters per minute) and can handle a maximum operating pressure of 5000 psi (350 bar). The valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 to 50 lbf-ft (61 to 68 Nm). Weighing .70 lb (.30 kg), this model is compact yet robust. For maintenance, it uses Viton seal kits with part number 990032006. The DSEOXCV is suitable for applications that require reliable switching between two different pressure sources while ensuring minimal binding and efficient operation under high-pressure conditions.
The Sun Hydraulics DSEOXCV (DSEOXCV) is a spring-offset, high-side shuttle cartridge valve designed for efficient fluid control in hydraulic systems. This 2-position valve features a normal offset position that connects the common port (port 3) to work port 4 while blocking work port 2. When the pressure at port 2 exceeds that of port 4, the cartridge shifts to connect the common port to port 2, subsequently blocking port 4. Despite being designed for a 4-port cavity, the nose port (port 1) remains unused. The valve incorporates Sun's floating style construction to reduce the risk of internal parts binding due to over-tightening or machining variations in cavity/cartridge installations. The DSEOXCV model fits into a T-32A cavity and belongs to Series 2 with a flow capacity of up to 30 gallons per minute (120 liters per minute) and can handle a maximum operating pressure of 5000 psi (350 bar). The valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 to 50 lbf-ft (61 to 68 Nm). Weighing .70 lb (.30 kg), this model is compact yet robust. For maintenance, it uses Viton seal kits with part number 990032006. The DSEOXCV is suitable for applications that require reliable switching between two different pressure sources while ensuring minimal binding and efficient operation under high-pressure conditions.

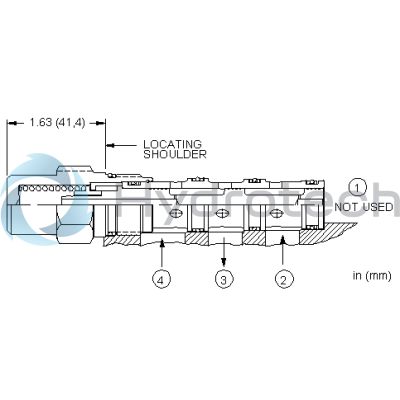

Spring-offset, high-side shuttle cartridges are 2-position valves that have a normal (offset) position that connects the common port (port 3) to work port 4, with work port 2 blocked. When the pressure at port 2 rises above the pressure at port 4, the cartridge shifts to connect the common port to port 2 with port 4 then blocked.
- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-32A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .70 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-032-006 |
