SUN HYDRAULICS
DRBDLSN/AP
$628.80 USD
Tags:
- SUN HYDRAULICS
- Material:DRBDLSN/AP
- Model:DRBD-LSN/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DRBDLSN/AP (DRBDLSN/AP) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. It allows for switching between ports 1 and 2 while blocking port 3, making it suitable for use alone or in conjunction with larger pilot-operated directional or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds a preset threshold. Notably, pressure at port 3 directly adds to the valve's setting, which might limit its usability as a work port in certain circuits; in such cases, a 4-port version may be considered. With its direct-acting design, the DRBDLSN/AP features low internal leakage and minimal pilot flow consumption, ensuring efficient operation. This design also allows interchangeability with pilot-operated versions due to identical cavity fittings and flow paths. The valve is not bistable; it can modulate between two positions as needed. Sun's floating style construction minimizes risks of internal parts binding from excessive installation torque or machining variations. Key specifications include a T-11A cavity size, series 1 classification, and a capacity of up to 7 gpm (28 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). Maximum valve leakage is rated at 2 in\u00b3/min (30 cc/min) at an oil viscosity of 110 SUS (24 cSt). Adjustments can be made through clockwise turns to increase pressure settings, facilitated by an internal hex adjustment screw size of 5/32 inches (4 mm). The valve has a hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30 and 35 lbf-ft (41 to 47 Nm). Additionally, it includes a locknut with dimensions of 9/16 inches (15 mm) that should be torqued to between 80 and 90 lbf-in (9 to 10 Nm). The model weighs approximately .60 lb (.30 kg) and uses Viton seal kits for cartridge sealing.
The Sun Hydraulics DRBDLSN/AP (DRBDLSN/AP) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. It allows for switching between ports 1 and 2 while blocking port 3, making it suitable for use alone or in conjunction with larger pilot-operated directional or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds a preset threshold. Notably, pressure at port 3 directly adds to the valve's setting, which might limit its usability as a work port in certain circuits; in such cases, a 4-port version may be considered. With its direct-acting design, the DRBDLSN/AP features low internal leakage and minimal pilot flow consumption, ensuring efficient operation. This design also allows interchangeability with pilot-operated versions due to identical cavity fittings and flow paths. The valve is not bistable; it can modulate between two positions as needed. Sun's floating style construction minimizes risks of internal parts binding from excessive installation torque or machining variations. Key specifications include a T-11A cavity size, series 1 classification, and a capacity of up to 7 gpm (28 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). Maximum valve leakage is rated at 2 in\u00b3/min (30 cc/min) at an oil viscosity of 110 SUS (24 cSt). Adjustments can be made through clockwise turns to increase pressure settings, facilitated by an internal hex adjustment screw size of 5/32 inches (4 mm). The valve has a hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30 and 35 lbf-ft (41 to 47 Nm). Additionally, it includes a locknut with dimensions of 9/16 inches (15 mm) that should be torqued to between 80 and 90 lbf-in (9 to 10 Nm). The model weighs approximately .60 lb (.30 kg) and uses Viton seal kits for cartridge sealing.

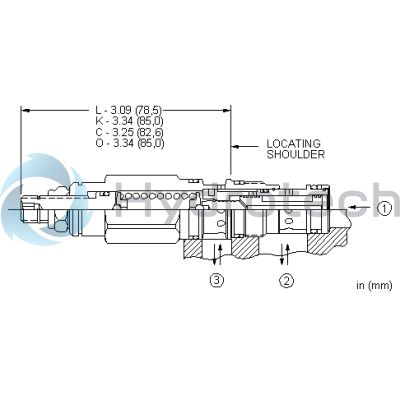

Direct-acting, 3-way directional cartridges (1 to 2 open, 3 blocked) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 7 gpm28 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
