SUN HYDRAULICS
DLDAZCV224
$810.90 USD
Tags:
- SUN HYDRAULICS
- Material:DLDAZCV224
- Model:DLDA-ZCV@224
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DLDAZCV224 (DLDAZCV224) is a high-performance, solenoid-operated 2-way, 2-position cartridge valve. This direct-acting, balanced spool directional valve is designed to efficiently control the flow of hydraulic fluid in various applications. It is available in both normally open or normally closed configurations, providing flexibility based on system requirements. The valve includes a position switch that confirms it remains in the spring-biased position, enhancing operational safety and reliability. Constructed for durability and high efficiency, the DLDAZCV224 features a unique magnetic design that yields a high spool actuating force per watt expended, ensuring reliable valve shifting even under demanding conditions. The solenoid tube assembly of this model is fatigue rated for 5000 psi (350 bar) service, making it suitable for high-pressure applications. Additionally, it incorporates Sun's floating style construction which minimizes internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 12 gpm (45 L/min), this valve is designed to handle significant hydraulic flow rates efficiently. The response time is typically swift at 50 ms, and the maximum valve leakage at 110 SUS (24 cSt) is well-controlled at 5 in\u00b3/min at 3000 psi (80 cc/min at 210 bar). It also supports up to 15,000 switching cycles per hour. The DLDAZCV224 requires specific installation tools due to its design; a crow's foot wrench or similar tool must be used during installation because the position switch precludes the use of a deep socket wrench. This model also features various coil termination and voltage options to cater to different operational needs and environments. Overall, the Sun Hydraulics DLDAZCV224 cartridge offers robust performance and reliability for hydraulic systems requiring precise fluid control with quick response times and high cycle rates.
The Sun Hydraulics DLDAZCV224 (DLDAZCV224) is a high-performance, solenoid-operated 2-way, 2-position cartridge valve. This direct-acting, balanced spool directional valve is designed to efficiently control the flow of hydraulic fluid in various applications. It is available in both normally open or normally closed configurations, providing flexibility based on system requirements. The valve includes a position switch that confirms it remains in the spring-biased position, enhancing operational safety and reliability. Constructed for durability and high efficiency, the DLDAZCV224 features a unique magnetic design that yields a high spool actuating force per watt expended, ensuring reliable valve shifting even under demanding conditions. The solenoid tube assembly of this model is fatigue rated for 5000 psi (350 bar) service, making it suitable for high-pressure applications. Additionally, it incorporates Sun's floating style construction which minimizes internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 12 gpm (45 L/min), this valve is designed to handle significant hydraulic flow rates efficiently. The response time is typically swift at 50 ms, and the maximum valve leakage at 110 SUS (24 cSt) is well-controlled at 5 in\u00b3/min at 3000 psi (80 cc/min at 210 bar). It also supports up to 15,000 switching cycles per hour. The DLDAZCV224 requires specific installation tools due to its design; a crow's foot wrench or similar tool must be used during installation because the position switch precludes the use of a deep socket wrench. This model also features various coil termination and voltage options to cater to different operational needs and environments. Overall, the Sun Hydraulics DLDAZCV224 cartridge offers robust performance and reliability for hydraulic systems requiring precise fluid control with quick response times and high cycle rates.
This solenoid-operated 2-way, 2-position cartridge is a direct-acting, balanced spool directional valve. The valve is available in either a normally open or normally closed configuration.
The position switch provides confirmation that the valve is in the spring biased position.
- A coil must be ordered with this cartridge. This cartridge is supplied as a sealed, factory set unit and is not field serviceable. If the assembly requires changes or service it needs to be returned to the factory. Any tampering will violate the product warranty.
- Position switch is CE approved.

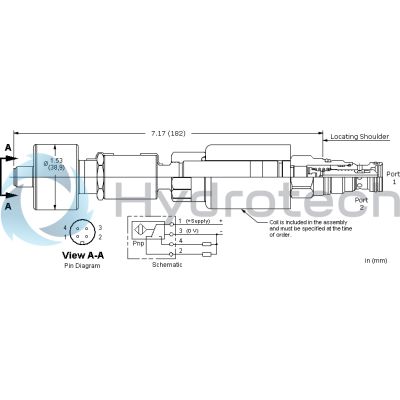

- When torquing this cartridge into its cavity, a crow's foot wrench or similar will be required since the position switch precludes the use of a deep socket wrench.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-413-006 |
