SUN HYDRAULICS
DDHGXCV
$585.50 USD
Tags:
- SUN HYDRAULICS
- Material:DDHGXCV
- Model:DDHG-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDHGXCV (DDHGXCV) is a two-position, 3-way directional cartridge valve, notable for its versatile configuration options across five different spool configurations. This model operates with a six-port interface, where port 5 remains unused. It is designed to handle a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure applications. The valve's capacity can vary depending on the spool type selected, supporting up to 80 gpm (320 L/min). A key feature of the DDHGXCV model is its hardened spool and sleeve which ensure low leakage rates and superior wear characteristics. This durability is enhanced by Sun Hydraulics' floating style construction which minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. The design specifics include a T54A cavity and a Series 4 classification. For operational requirements, the valve needs a minimum pilot pressure of 300 psi (20 bar) to shift and can achieve full shift at the rated flow with a pilot pressure of 350 psi (24 bar). The maximum valve leakage at specific conditions is noted at 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). Installation specifications include a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 - 375 lbf\u00b7ft (474 - 508 Nm). The overall weight of the model is approximately 5.9 lbs (2.7 kg), and it utilizes Viton seals as indicated by the seal kit/cartridge number Viton:990054006. This model's robust construction and configurable features make it highly suitable for applications requiring precise control over hydraulic flow under varying pressure conditions, offering both reliability and performance in demanding environments.
The Sun Hydraulics DDHGXCV (DDHGXCV) is a two-position, 3-way directional cartridge valve, notable for its versatile configuration options across five different spool configurations. This model operates with a six-port interface, where port 5 remains unused. It is designed to handle a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure applications. The valve's capacity can vary depending on the spool type selected, supporting up to 80 gpm (320 L/min). A key feature of the DDHGXCV model is its hardened spool and sleeve which ensure low leakage rates and superior wear characteristics. This durability is enhanced by Sun Hydraulics' floating style construction which minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. The design specifics include a T54A cavity and a Series 4 classification. For operational requirements, the valve needs a minimum pilot pressure of 300 psi (20 bar) to shift and can achieve full shift at the rated flow with a pilot pressure of 350 psi (24 bar). The maximum valve leakage at specific conditions is noted at 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). Installation specifications include a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 - 375 lbf\u00b7ft (474 - 508 Nm). The overall weight of the model is approximately 5.9 lbs (2.7 kg), and it utilizes Viton seals as indicated by the seal kit/cartridge number Viton:990054006. This model's robust construction and configurable features make it highly suitable for applications requiring precise control over hydraulic flow under varying pressure conditions, offering both reliability and performance in demanding environments.

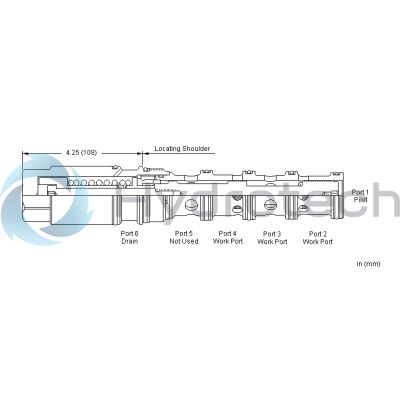

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-54A |
| Series | 4 |
| Capacity | 80 gpm320 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Pilot Volume Displacement | .27 in³4,4 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 5.9 lb2,7 kg |
| Seal kit - Cartridge | Viton: 990-054-006 |
