SUN HYDRAULICS
DDFGXYN
$325.30 USD
Tags:
- SUN HYDRAULICS
- Material:DDFGXYN
- Model:DDFG-XYN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFGXYN (Material Number: DDFGXYN) is a high-performance hydraulic valve designed for robust and precise fluid control in various applications. This two-position, 3-way directional cartridge features a unique 6-port configuration, although port 5 is not utilized. It offers multiple spool configurations, enhancing its adaptability to different operational requirements. The valve operates with a maximum capacity of 40 gpm (160 L/min), and can withstand pressures up to 5000 psi (350 bar), making it suitable for high-pressure systems. The DDFGXYN incorporates hardened spool and sleeve components that ensure low leakage rates and exceptional durability against wear. This durability is further supported by Sun's floating style construction, which reduces the risk of internal parts binding due to installation torque or variations in cavity/cartridge machining. The valve's design requires a minimum pilot pressure of 160 psi (11 bar) for shifting, and a pilot pressure of 290 psi (20 bar) for full shift at rated flow, ensuring reliable operation under varying conditions. Additionally, the DDFGXYN is designed for easy installation with a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). Weighing at approximately 2.90 lbs (1.30 kg), it remains manageable and practical for integration into existing systems without significant modifications. The valve also features advanced sealing technology with available Viton seal kits, enhancing its performance in diverse operating environments. This model is particularly suited for applications requiring precise control over fluid direction and pressure within hydraulic circuits.
The Sun Hydraulics DDFGXYN (Material Number: DDFGXYN) is a high-performance hydraulic valve designed for robust and precise fluid control in various applications. This two-position, 3-way directional cartridge features a unique 6-port configuration, although port 5 is not utilized. It offers multiple spool configurations, enhancing its adaptability to different operational requirements. The valve operates with a maximum capacity of 40 gpm (160 L/min), and can withstand pressures up to 5000 psi (350 bar), making it suitable for high-pressure systems. The DDFGXYN incorporates hardened spool and sleeve components that ensure low leakage rates and exceptional durability against wear. This durability is further supported by Sun's floating style construction, which reduces the risk of internal parts binding due to installation torque or variations in cavity/cartridge machining. The valve's design requires a minimum pilot pressure of 160 psi (11 bar) for shifting, and a pilot pressure of 290 psi (20 bar) for full shift at rated flow, ensuring reliable operation under varying conditions. Additionally, the DDFGXYN is designed for easy installation with a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). Weighing at approximately 2.90 lbs (1.30 kg), it remains manageable and practical for integration into existing systems without significant modifications. The valve also features advanced sealing technology with available Viton seal kits, enhancing its performance in diverse operating environments. This model is particularly suited for applications requiring precise control over fluid direction and pressure within hydraulic circuits.

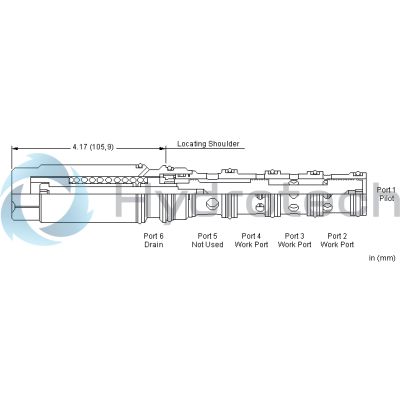

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 160 psi11 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .13 in³2,1 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
