SUN HYDRAULICS
DDFGXOV
$327.30 USD
Tags:
- SUN HYDRAULICS
- Material:DDFGXOV
- Model:DDFG-XOV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFGXOV (DDFGXOV) is a high-performance, two-position, 3-way directional cartridge valve, distinguished by its six-port configuration with port 5 not utilized. This valve is capable of handling pressures up to 5000 psi (350 bar), with all ports designed to accommodate this maximum pressure. It offers a variety of spool configurations, allowing customization based on specific application needs. The valve's operational capacity and pilot pressure requirements are contingent on the spool type selected. Key features include a maximum flow capacity of 40 gpm (160 L/min), and minimal leakage rates thanks to its hardened spool and sleeve which also contribute to excellent wear characteristics. The DDFGXOV incorporates Sun's floating style construction which aids in reducing internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. Technical specifications highlight a minimum pilot pressure requirement of 160 psi (11 bar) for valve shifting, and 290 psi (20 bar) for full shift at rated flow. The maximum allowable leakage at operational conditions is quantified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additionally, the model has specific installation requirements including a valve hex size of 1-1/4 in. (31.8 mm) and an installation torque range between 150-160 lbf\u00b7ft (203-217 Nm). The unit weighs approximately 2.90 lb (1.30 kg). This valve is suited for applications where precise control of hydraulic flow and direction is necessary under high pressure conditions, leveraging its robust design and customizable configurations to meet diverse operational demands efficiently.
The Sun Hydraulics DDFGXOV (DDFGXOV) is a high-performance, two-position, 3-way directional cartridge valve, distinguished by its six-port configuration with port 5 not utilized. This valve is capable of handling pressures up to 5000 psi (350 bar), with all ports designed to accommodate this maximum pressure. It offers a variety of spool configurations, allowing customization based on specific application needs. The valve's operational capacity and pilot pressure requirements are contingent on the spool type selected. Key features include a maximum flow capacity of 40 gpm (160 L/min), and minimal leakage rates thanks to its hardened spool and sleeve which also contribute to excellent wear characteristics. The DDFGXOV incorporates Sun's floating style construction which aids in reducing internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. Technical specifications highlight a minimum pilot pressure requirement of 160 psi (11 bar) for valve shifting, and 290 psi (20 bar) for full shift at rated flow. The maximum allowable leakage at operational conditions is quantified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additionally, the model has specific installation requirements including a valve hex size of 1-1/4 in. (31.8 mm) and an installation torque range between 150-160 lbf\u00b7ft (203-217 Nm). The unit weighs approximately 2.90 lb (1.30 kg). This valve is suited for applications where precise control of hydraulic flow and direction is necessary under high pressure conditions, leveraging its robust design and customizable configurations to meet diverse operational demands efficiently.

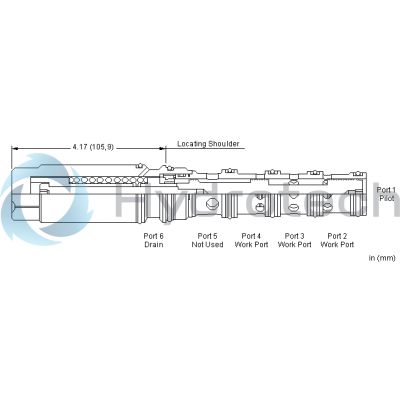

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 160 psi11 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .13 in³2,1 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
