SUN HYDRAULICS
DDFGXON
$316.30 USD
Tags:
- SUN HYDRAULICS
- Material:DDFGXON
- Model:DDFG-XON
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFGXON (DDFGXON) is a versatile hydraulic cartridge valve designed for high-pressure applications, featuring a two-position, 3-way directional control with six ports, where port 5 remains unused. This model can be equipped with up to five different spool configurations, enhancing its adaptability for various hydraulic systems. The valve operates efficiently with a supply through port 3 and maintains a maximum operating pressure capacity of 5000 psi (350 bar). Each port in this model is engineered to handle these high pressures, ensuring robust performance across diverse operating conditions. The DDFGXON valve showcases hardened spool and sleeve components that significantly reduce spool leakage rates while providing exceptional wear characteristics. This design reliability is further supported by Sun's floating style construction, which minimizes the risk of internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. This model is specifically tailored for systems requiring precise fluid control with capacities reaching up to 40 gpm (160 L/min). It requires a minimum pilot pressure of 160 psi (11 bar) to initiate valve shifting and approximately 290 psi (20 bar) for full shifting at rated flow. Additionally, the valve facilitates easy maintenance and integration into existing systems with a standardized T53A cavity and a consistent installation torque specification between 150-160 lbf-ft (203-217 Nm). Overall, the Sun Hydraulics DDFGXON offers an efficient solution for managing directional control in high-pressure environments, ensuring reliable operation and longevity in demanding hydraulic applications.
The Sun Hydraulics DDFGXON (DDFGXON) is a versatile hydraulic cartridge valve designed for high-pressure applications, featuring a two-position, 3-way directional control with six ports, where port 5 remains unused. This model can be equipped with up to five different spool configurations, enhancing its adaptability for various hydraulic systems. The valve operates efficiently with a supply through port 3 and maintains a maximum operating pressure capacity of 5000 psi (350 bar). Each port in this model is engineered to handle these high pressures, ensuring robust performance across diverse operating conditions. The DDFGXON valve showcases hardened spool and sleeve components that significantly reduce spool leakage rates while providing exceptional wear characteristics. This design reliability is further supported by Sun's floating style construction, which minimizes the risk of internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. This model is specifically tailored for systems requiring precise fluid control with capacities reaching up to 40 gpm (160 L/min). It requires a minimum pilot pressure of 160 psi (11 bar) to initiate valve shifting and approximately 290 psi (20 bar) for full shifting at rated flow. Additionally, the valve facilitates easy maintenance and integration into existing systems with a standardized T53A cavity and a consistent installation torque specification between 150-160 lbf-ft (203-217 Nm). Overall, the Sun Hydraulics DDFGXON offers an efficient solution for managing directional control in high-pressure environments, ensuring reliable operation and longevity in demanding hydraulic applications.

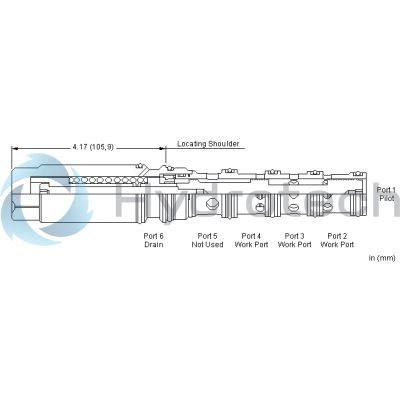

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 160 psi11 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .13 in³2,1 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
