SUN HYDRAULICS
DDDGXZV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

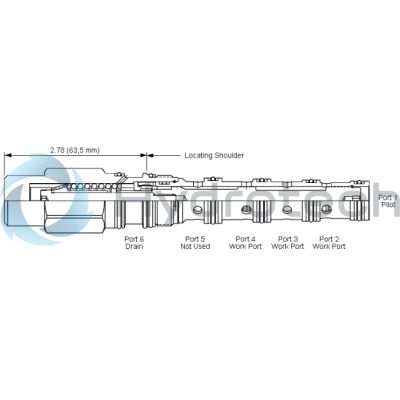

The Sun Hydraulics DDDGXZV (Material Number DDDGXZV) is a two-position, 3-way directional cartridge valve designed for robust hydraulic system applications. This model, part of the T52A cavity series and Series 2, features six ports, with port 5 unused and port 3 serving as the supply port. Each port can withstand pressures up to 5000 psi (350 bar). The valve\u2019s capacity and performance vary depending on the spool type selected, supporting up to 20 gpm (80 L/min). This highly versatile valve offers minimal leakage for each path, with a maximum leakage specification at 110 SUS (24 cSt) being 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). It requires a minimum pilot pressure of 145 psi (10 bar) to shift and achieves full shift at rated flow with a pilot pressure of 290 psi (20 bar). The design incorporates Sun's floating style construction which reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. For enhanced durability and consistent operational quality, the DDDGXZV features a hardened spool and sleeve. These components not only ensure low spool leakage rates but also provide excellent wear characteristics under various operating conditions. The valve is equipped with Viton seals for reliable performance in diverse environments. Installation specifications include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range between 45 \u2013 50 lbf\u00b7ft (61 \u201368 Nm), ensuring secure mounting within hydraulic setups. This model is an effective solution for controlling fluid flow in hydraulic circuits requiring precise operation and high-pressure handling capability.
