SUN HYDRAULICS
DCCDXHV/AP

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

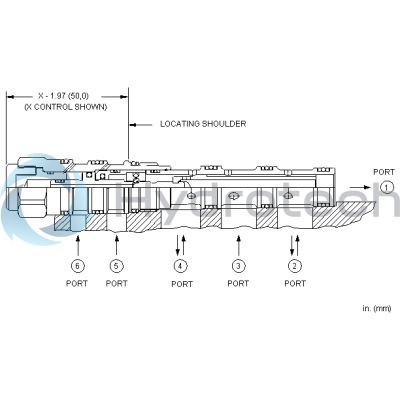

The Sun Hydraulics DCCDXHV/AP (DCCDXHV/AP) is a two-position, detented, 4-way directional cartridge valve designed for robust hydraulic system applications. This model, part of the T61A series, offers a variety of configurations with up to three different spool options to suit various operational needs. Each spool type determines the capacity of the valve, which ranges from 10 to 13 gallons per minute (40 to 50 liters per minute). The valve is built to withstand a maximum operating pressure of 5000 psi (350 bar), and all ports including pilot ports (port 5 and port 6) can accommodate this pressure level. Key features of this model include hardened spool and sleeve for low leakage rates and enhanced wear characteristics, as well as Sun's floating style construction which minimizes internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The minimum pilot pressure required to shift the valve is 175 psi (12 bar), ensuring reliable operation under various conditions. The maximum valve leakage at 110 SUS (24 cSt) is noted at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The DCCDXHV/AP incorporates positively sealed pilot ports from the work ports, maintaining system integrity and preventing leakage. With a modest weight of .40 lb (0.20 kg), installation and maintenance are straightforward, supported by an installation torque of 30-35 lbf ft (41-47 Nm) and a valve hex size of 7/8 inch (22.2 mm). Available seal kits for this cartridge use Viton material, ensuring durability and resistance against various fluids and temperatures within hydraulic systems.
