SUN HYDRAULICS
DCCCXYN
$153.80 USD
Tags:
- SUN HYDRAULICS
- Material:DCCCXYN
- Model:DCCC-XYN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXYN (DCCCXYN) is a three-position, 4-way directional cartridge valve characterized by its spring-centered configuration and the ability to handle a maximum operating pressure of 5000 psi (350 bar). This model is designed with six ports, including pilot ports (port 5 and port 6) which are positively sealed from the work ports, enhancing its operational integrity. The valve's performance capacity, which ranges between 7 to 10 gpm (28 to 40 L/min), depends on the specific spool type chosen, allowing for customization based on application requirements. The DCCCXYN features hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, crucial for maintaining efficiency and longevity in demanding environments. Additionally, it incorporates Sun\u2019s floating style construction which minimizes the risk of internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. With a minimum pilot pressure requirement of 175 psi (12 bar) for shifting the valve and a maximum leakage specification of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), this model assures reliable performance even under stringent conditions. The valve's hex size is measured at 7/8 inches (22.2 mm), and it requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Weighing just about .40 lb (0.20 kg), the DCCCXYN offers a compact yet robust solution for hydraulic systems requiring precise control over fluid direction and flow.
The Sun Hydraulics DCCCXYN (DCCCXYN) is a three-position, 4-way directional cartridge valve characterized by its spring-centered configuration and the ability to handle a maximum operating pressure of 5000 psi (350 bar). This model is designed with six ports, including pilot ports (port 5 and port 6) which are positively sealed from the work ports, enhancing its operational integrity. The valve's performance capacity, which ranges between 7 to 10 gpm (28 to 40 L/min), depends on the specific spool type chosen, allowing for customization based on application requirements. The DCCCXYN features hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, crucial for maintaining efficiency and longevity in demanding environments. Additionally, it incorporates Sun\u2019s floating style construction which minimizes the risk of internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. With a minimum pilot pressure requirement of 175 psi (12 bar) for shifting the valve and a maximum leakage specification of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), this model assures reliable performance even under stringent conditions. The valve's hex size is measured at 7/8 inches (22.2 mm), and it requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Weighing just about .40 lb (0.20 kg), the DCCCXYN offers a compact yet robust solution for hydraulic systems requiring precise control over fluid direction and flow.

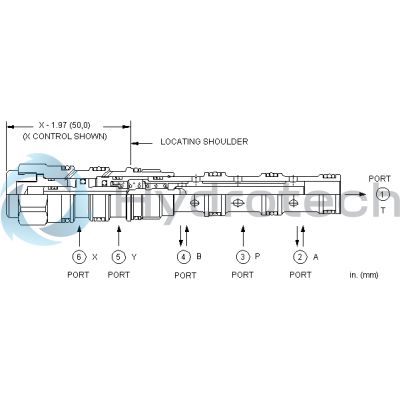

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
