SUN HYDRAULICS
DCCCXAV
$169.80 USD
Tags:
- SUN HYDRAULICS
- Material:DCCCXAV
- Model:DCCC-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXAV (DCCCXAV) is a robust and versatile hydraulic valve designed for high-pressure applications, suitable for use in a variety of hydraulic systems. This model is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports, including pilot ports (port 5 and port 6), which are positively sealed from the work ports. Each port can withstand up to 5000 psi or 350 bar, making it ideal for heavy-duty operations. The DCCCXAV offers a flow capacity ranging between 7 to 10 gpm (28 to 40 L/min), with the maximum operating pressure also at 5000 psi (350 bar). It requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve, ensuring responsive control under varying pressures. The design incorporates Sun's floating style construction which minimizes internal parts binding due to excessive installation torque or cavity/cartridge machining variations, enhancing its reliability and performance longevity. The hardened spool and sleeve are engineered for low leakage rates and excellent wear characteristics, which are crucial in maintaining efficiency and preventing system failures. The maximum valve leakage at specific conditions is quantified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additionally, the model has a compact form factor with a weight of just .40 lb (0.20 kg), and it requires an installation torque of between 30 -35 lbf ft (41 -47 Nm). This valve's adaptability and robust specifications make it suitable for applications requiring precise control over fluid direction and pressure within hydraulic circuits while maintaining high performance under extreme pressure conditions.
The Sun Hydraulics DCCCXAV (DCCCXAV) is a robust and versatile hydraulic valve designed for high-pressure applications, suitable for use in a variety of hydraulic systems. This model is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports, including pilot ports (port 5 and port 6), which are positively sealed from the work ports. Each port can withstand up to 5000 psi or 350 bar, making it ideal for heavy-duty operations. The DCCCXAV offers a flow capacity ranging between 7 to 10 gpm (28 to 40 L/min), with the maximum operating pressure also at 5000 psi (350 bar). It requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve, ensuring responsive control under varying pressures. The design incorporates Sun's floating style construction which minimizes internal parts binding due to excessive installation torque or cavity/cartridge machining variations, enhancing its reliability and performance longevity. The hardened spool and sleeve are engineered for low leakage rates and excellent wear characteristics, which are crucial in maintaining efficiency and preventing system failures. The maximum valve leakage at specific conditions is quantified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additionally, the model has a compact form factor with a weight of just .40 lb (0.20 kg), and it requires an installation torque of between 30 -35 lbf ft (41 -47 Nm). This valve's adaptability and robust specifications make it suitable for applications requiring precise control over fluid direction and pressure within hydraulic circuits while maintaining high performance under extreme pressure conditions.

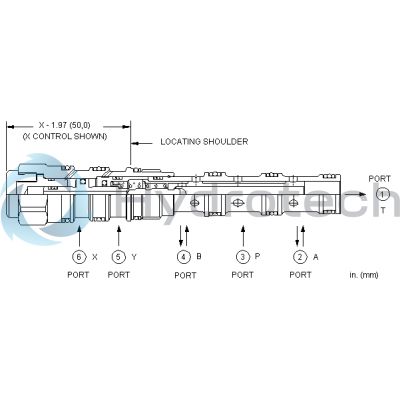

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
