SUN HYDRAULICS
CXZAXCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

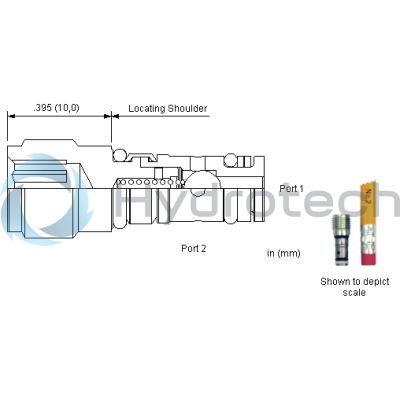

The Sun Hydraulics CXZAXCV (CXZAXCV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model features a free-flow design, allowing fluid to move seamlessly from the inlet port 1 to the outlet port 2 while preventing backflow. It is particularly notable for its extremely low leakage rate, which is less than 1 drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The CXZAXCV can handle a maximum operating pressure of up to 5000 psi (350 bar) at both ports, making it suitable for high-pressure systems. The valve's internal construction benefits from Sun's floating style design which helps prevent internal parts from binding due to over-torquing during installation or variations in cavity/cartridge machining. This enhances the valve's reliability and longevity in demanding environments. This model is constructed with a 0.188 inch internal hex size and requires an installation torque between 100 - 120 lbf.in (11 - 14 Nm). Its compact design, with a weight of only 0.20 lb (0.10 kg), allows for easy integration into various hydraulic circuits without adding significant bulk or weight. Overall, the Sun Hydraulics CXZAXCV check valve is an essential component for systems where unidirectional flow and leak protection are critical, offering robust performance in a compact package.
