SUN HYDRAULICS
CXHCXZV
$101.70 USD
Tags:
- SUN HYDRAULICS
- Material:CXHCXZV
- Model:CXHC-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHCXZV (CXHCXZV) is a versatile hydraulic check valve designed for high-performance applications requiring reliable one-way flow and minimal leakage. This model is part of Sun Hydraulics' Series 3 and is engineered to fit a T17A cavity, ensuring compatibility with existing three-port setups where the third port is blocked. The CXHCXZV excels in systems where traditional two-port check valves are needed but space or configuration constraints exist. This check valve supports a substantial flow capacity of up to 80 gpm (320 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure environments. The design incorporates Sun's floating style construction which reduces the risk of internal parts binding\u2014a common issue caused by over-torquing during installation or variations in cavity/cartridge machining. This feature ensures consistent performance and durability. With an exceptionally low maximum leakage rate of less than one drop per minute (0.07 cc/min), the CXHCXZV provides an efficient solution for systems demanding strict fluid control to maintain system integrity and performance. Installation specifications include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150-160 lbf\u00b7ft (203-217 Nm). For maintenance or repair, a Viton seal kit (990017006) is recommended, ensuring long-term resilience against high temperatures and chemical exposure. Overall, the Sun Hydraulics CXHCXZV check valve is an optimal choice for hydraulic circuits requiring robust, leak-proof performance in a compact three-port configuration, providing reliability across various hydraulic applications.
The Sun Hydraulics CXHCXZV (CXHCXZV) is a versatile hydraulic check valve designed for high-performance applications requiring reliable one-way flow and minimal leakage. This model is part of Sun Hydraulics' Series 3 and is engineered to fit a T17A cavity, ensuring compatibility with existing three-port setups where the third port is blocked. The CXHCXZV excels in systems where traditional two-port check valves are needed but space or configuration constraints exist. This check valve supports a substantial flow capacity of up to 80 gpm (320 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure environments. The design incorporates Sun's floating style construction which reduces the risk of internal parts binding\u2014a common issue caused by over-torquing during installation or variations in cavity/cartridge machining. This feature ensures consistent performance and durability. With an exceptionally low maximum leakage rate of less than one drop per minute (0.07 cc/min), the CXHCXZV provides an efficient solution for systems demanding strict fluid control to maintain system integrity and performance. Installation specifications include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150-160 lbf\u00b7ft (203-217 Nm). For maintenance or repair, a Viton seal kit (990017006) is recommended, ensuring long-term resilience against high temperatures and chemical exposure. Overall, the Sun Hydraulics CXHCXZV check valve is an optimal choice for hydraulic circuits requiring robust, leak-proof performance in a compact three-port configuration, providing reliability across various hydraulic applications.

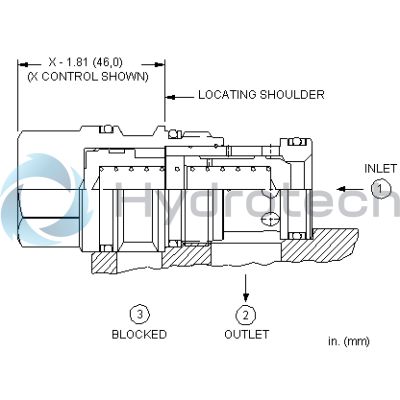

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-017-006 |
