SUN HYDRAULICS
CXHAXZV/LH
$112.00 USD
Tags:
- SUN HYDRAULICS
- Material:CXHAXZV/LH
- Model:CXHA-XZV/LH
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHAXZV/LH (CXHAXZV/LH) is a robust check valve designed for high-pressure hydraulic applications, capable of handling pressures up to 5000 psi (350 bar) at both ports. This model is specifically engineered for efficient operation with a maximum flow capacity of 80 gpm (320 L/min), making it suitable for a variety of demanding hydraulic circuits. The valve features Sun\u2019s unique floating style construction, which reduces the risk of internal parts binding due to variations in installation torque or cavity/cartridge machining, ensuring reliable performance and longevity. The CXHAXZV/LH is characterized by its exceptional low leakage rate, limited to less than one drop per minute (0.07 cc/min), which promotes system efficiency and minimizes fluid loss. It supports free flow from inlet port 1 to outlet port 2 while blocking flow in the opposite direction, adhering to the typical function of nosetoside check valves. The unit is constructed with corrosion-resistant materials, indicated by the model code suffix LH, making it suitable for use in corrosive environments. Installation specifications include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf.ft (203 - 217 Nm). The overall weight of the valve is approximately 1.60 lbs (0.70 kg). For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they can damage the seals. Overall, the Sun Hydraulics CXHAXZV/LH offers reliability and precision for hydraulic systems requiring high-pressure operation and minimal leakage, combined with resistance to corrosive conditions and ease of installation.
The Sun Hydraulics CXHAXZV/LH (CXHAXZV/LH) is a robust check valve designed for high-pressure hydraulic applications, capable of handling pressures up to 5000 psi (350 bar) at both ports. This model is specifically engineered for efficient operation with a maximum flow capacity of 80 gpm (320 L/min), making it suitable for a variety of demanding hydraulic circuits. The valve features Sun\u2019s unique floating style construction, which reduces the risk of internal parts binding due to variations in installation torque or cavity/cartridge machining, ensuring reliable performance and longevity. The CXHAXZV/LH is characterized by its exceptional low leakage rate, limited to less than one drop per minute (0.07 cc/min), which promotes system efficiency and minimizes fluid loss. It supports free flow from inlet port 1 to outlet port 2 while blocking flow in the opposite direction, adhering to the typical function of nosetoside check valves. The unit is constructed with corrosion-resistant materials, indicated by the model code suffix LH, making it suitable for use in corrosive environments. Installation specifications include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf.ft (203 - 217 Nm). The overall weight of the valve is approximately 1.60 lbs (0.70 kg). For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they can damage the seals. Overall, the Sun Hydraulics CXHAXZV/LH offers reliability and precision for hydraulic systems requiring high-pressure operation and minimal leakage, combined with resistance to corrosive conditions and ease of installation.

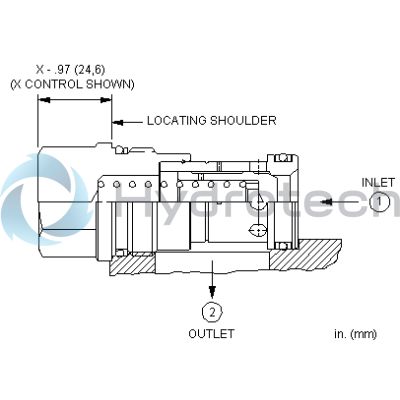

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
