SUN HYDRAULICS
CXHAXEE
$192.40 USD
Tags:
- SUN HYDRAULICS
- Material:CXHAXEE
- Model:CXHA-XEE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHAXEE (CXHAXEE) is a high-performance check valve designed for hydraulic applications requiring reliable, unidirectional flow control. This model features a free flow from inlet port 1 to outlet port 2 while effectively blocking flow in the opposite direction, ensuring efficient operation in various hydraulic systems. Constructed to fit a T16A cavity and part of the Series 3, the CXHAXEE is capable of handling flow rates up to 80 gpm (320 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). The valve demonstrates exceptional leak resistance, with maximum leakage maintained at less than one drop per minute (0.07 cc/min), highlighting its precision engineering. It is specifically designed with EPDM seals suitable for systems utilizing phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as this can cause damage. The CXHAXEE incorporates Sun Hydraulics' floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model is also noted for its robust build and corrosion-resistant options, making it ideal for use in harsh environments. The valve has an installation torque requirement between 150 and 160 lbf\u00b7ft (203 and 217 Nm), and it weighs approximately 1.60 lbs (0.70 kg). With these specifications and features, the Sun Hydraulics CXHAXEE check valve ensures reliable performance and durability for specialized hydraulic applications where fluid control is critical.
The Sun Hydraulics CXHAXEE (CXHAXEE) is a high-performance check valve designed for hydraulic applications requiring reliable, unidirectional flow control. This model features a free flow from inlet port 1 to outlet port 2 while effectively blocking flow in the opposite direction, ensuring efficient operation in various hydraulic systems. Constructed to fit a T16A cavity and part of the Series 3, the CXHAXEE is capable of handling flow rates up to 80 gpm (320 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). The valve demonstrates exceptional leak resistance, with maximum leakage maintained at less than one drop per minute (0.07 cc/min), highlighting its precision engineering. It is specifically designed with EPDM seals suitable for systems utilizing phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as this can cause damage. The CXHAXEE incorporates Sun Hydraulics' floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model is also noted for its robust build and corrosion-resistant options, making it ideal for use in harsh environments. The valve has an installation torque requirement between 150 and 160 lbf\u00b7ft (203 and 217 Nm), and it weighs approximately 1.60 lbs (0.70 kg). With these specifications and features, the Sun Hydraulics CXHAXEE check valve ensures reliable performance and durability for specialized hydraulic applications where fluid control is critical.

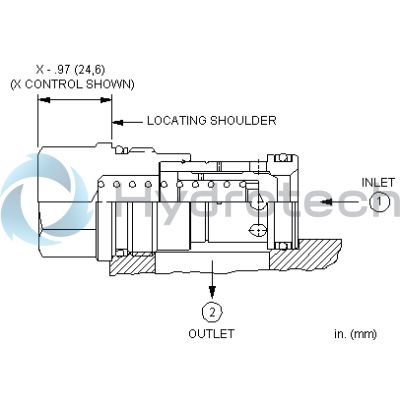

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
