SUN HYDRAULICS
CXGEXBN
$102.30 USD
Tags:
- SUN HYDRAULICS
- Material:CXGEXBN
- Model:CXGE-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGEXBN (CXGEXBN) is a specialized hydraulic check valve designed for versatile applications requiring reliable one-way flow in hydraulic systems. This model is particularly useful for adapting a two-port check valve function within a three-port cavity configuration, with the third port effectively blocked off. This feature makes it ideal for retrofitting or upgrading existing hydraulic circuits without the need for extensive modifications. The CXGEXBN valve is engineered to handle high pressures up to 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance in demanding environments. It boasts an impressive maximum flow capacity of 60 gpm (240 L/min), accommodating substantial hydraulic fluid volumes efficiently. The valve's design minimizes leakage, maintaining tight control with less than one drop per minute (0.07 cc/min) leakage, which is crucial for maintaining system integrity and performance. Constructed with corrosion resistance in mind, the CXGEXBN incorporates Sun Hydraulics' floating style construction. This design feature reduces the risk of internal parts binding which can occur due to over-torquing during installation or from variations in cavity or cartridge machining. The valve's hex size is 1-1/4 inches (31.8 mm), and it requires an installation torque between 150 - 160 lbf.ft (203 - 217 Nm). Weighing at only 1.60 lbs (0.70 kg), it offers a lightweight yet durable solution for hydraulic systems. Overall, the Sun Hydraulics CXGEXBN check valve provides a reliable and efficient solution for controlling fluid direction and preventing backflow in hydraulic systems, especially where space or existing configurations pose constraints.
The Sun Hydraulics CXGEXBN (CXGEXBN) is a specialized hydraulic check valve designed for versatile applications requiring reliable one-way flow in hydraulic systems. This model is particularly useful for adapting a two-port check valve function within a three-port cavity configuration, with the third port effectively blocked off. This feature makes it ideal for retrofitting or upgrading existing hydraulic circuits without the need for extensive modifications. The CXGEXBN valve is engineered to handle high pressures up to 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance in demanding environments. It boasts an impressive maximum flow capacity of 60 gpm (240 L/min), accommodating substantial hydraulic fluid volumes efficiently. The valve's design minimizes leakage, maintaining tight control with less than one drop per minute (0.07 cc/min) leakage, which is crucial for maintaining system integrity and performance. Constructed with corrosion resistance in mind, the CXGEXBN incorporates Sun Hydraulics' floating style construction. This design feature reduces the risk of internal parts binding which can occur due to over-torquing during installation or from variations in cavity or cartridge machining. The valve's hex size is 1-1/4 inches (31.8 mm), and it requires an installation torque between 150 - 160 lbf.ft (203 - 217 Nm). Weighing at only 1.60 lbs (0.70 kg), it offers a lightweight yet durable solution for hydraulic systems. Overall, the Sun Hydraulics CXGEXBN check valve provides a reliable and efficient solution for controlling fluid direction and preventing backflow in hydraulic systems, especially where space or existing configurations pose constraints.

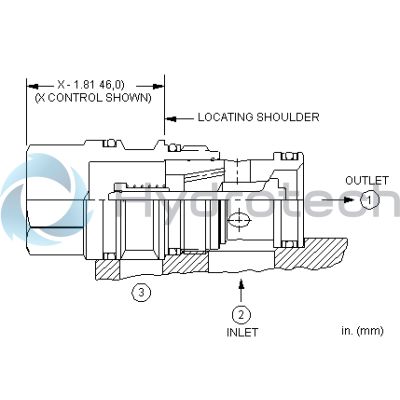

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
