SUN HYDRAULICS
CXFDXCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

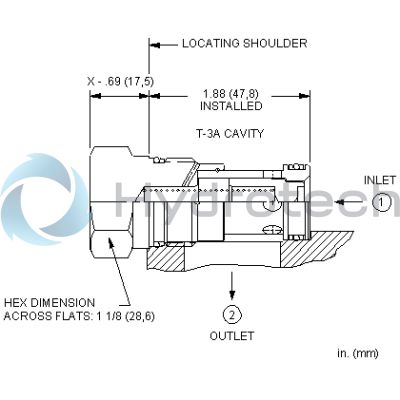

The Sun Hydraulics CXFDXCN (CXFDXCN) is a high-performance hydraulic valve designed for specific use in parts-in-body, hot oil shuttle assemblies. This model utilizes a dual valve configuration, positioned nose to nose with a pin in between, to create an effective low side shuttle system. The CXFDXCN operates within the T3A cavity specification and belongs to the Series 2 line of Sun Hydraulics' products. This valve is engineered to handle a capacity of up to 10 gpm (40 L/min), making it suitable for moderate flow rate applications. It requires a valve hex size of 1 1/8 inches (28.6 mm) and should be installed with a torque between 45 - 50 lbf ft (61 - 68 Nm). For maintenance and repairs, it uses a Viton seal kit under the part number 990203006. In terms of operational features, the CXFDXCN is classified as direct acting, which is ideal for systems requiring fast response times and high tolerance to contamination. Direct acting valves like this one are generally preferred for their stability and robust performance in preventing overpressure conditions. The design and material specifications ensure that this valve not only meets the required standards for efficiency but also offers reliability in hot oil applications where thermal stability is crucial.
