SUN HYDRAULICS
CXFCXZV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

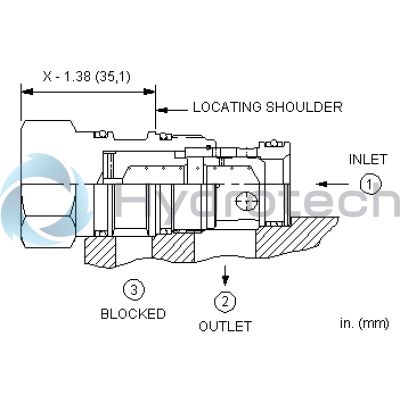

The Sun Hydraulics CXFCXZV (CXFCXZV) is designed to meet the needs of hydraulic systems requiring reliable check valve functionality within a three-port cavity setup. This valve's unique feature allows it to function as a standard 2-port check valve while port 3 of the cartridge is blocked off, making it ideal for circuits that already have an existing three-port cavity. The CXFCXZV model is part of the T2A cavity series and can handle a flow capacity of up to 40 gpm (160 L/min), withstanding a maximum operating pressure of 5000 psi (350 bar). This model is distinguished by its extremely low leakage rate, which does not exceed one drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. The construction incorporates Sun\u2019s floating style, which minimizes potential internal part binding that could arise from excessive installation torque or variations in cavity/cartridge machining. This design consideration contributes significantly to the valve's reliability and longevity. The CXFCXZV has specific installation requirements, including a valve hex size of 1-1/8 inches (28.6 mm) and an installation torque ranging between 45 \u2013 50 lbf.ft (61 \u2013 68 Nm). It utilizes Viton seals for enhanced performance under various operating conditions. This model is direct acting, which means it operates quickly, tolerates dirt well, and provides stable and robust performance for critical hydraulic applications where precise fluid control is necessary.
