SUN HYDRAULICS
CHECK CARTRIDGE
CXFAXDN
$40.20 USD
Tags:
- SUN HYDRAULICS
- Material:CXFAXDN
- Model:CXFA-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXFAXDN (CXFAXDN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. Specifically engineered for use in systems with phosphate ester fluids, this valve features cartridges configured with EPDM seals to ensure compatibility and performance under such conditions. However, it is crucial to avoid exposure to petroleum-based fluids, greases, and lubricants as they can damage the seals. The CXFAXDN offers impressive specifications including a maximum operating pressure of 5000 psi (350 bar) at both ports 1 and 2, and a flow capacity of up to 40 gpm (160 L/min). The valve is distinguished by its very low leakage rate, maintaining less than 1 drop per minute (0.07 cc/min), which underscores its efficiency in preventing fluid loss. The construction incorporates Sun\u2019s floating style design which helps minimize the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model also supports easy installation with a specified valve hex size of 1 1/8 in. (28.6 mm) and an installation torque range of 45 - 50 lbf ft (61 - 68 Nm). Weighing just .40 lb (0.20 kg), the CXFAXDN is both compact and lightweight, facilitating integration into various hydraulic setups without adding significant bulk or weight. Overall, the Sun Hydraulics CXFAXDN check valve is an ideal solution for applications where high pressure and chemical compatibility are critical, all while ensuring minimal leakage and maintenance requirements.
The Sun Hydraulics CXFAXDN (CXFAXDN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. Specifically engineered for use in systems with phosphate ester fluids, this valve features cartridges configured with EPDM seals to ensure compatibility and performance under such conditions. However, it is crucial to avoid exposure to petroleum-based fluids, greases, and lubricants as they can damage the seals. The CXFAXDN offers impressive specifications including a maximum operating pressure of 5000 psi (350 bar) at both ports 1 and 2, and a flow capacity of up to 40 gpm (160 L/min). The valve is distinguished by its very low leakage rate, maintaining less than 1 drop per minute (0.07 cc/min), which underscores its efficiency in preventing fluid loss. The construction incorporates Sun\u2019s floating style design which helps minimize the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model also supports easy installation with a specified valve hex size of 1 1/8 in. (28.6 mm) and an installation torque range of 45 - 50 lbf ft (61 - 68 Nm). Weighing just .40 lb (0.20 kg), the CXFAXDN is both compact and lightweight, facilitating integration into various hydraulic setups without adding significant bulk or weight. Overall, the Sun Hydraulics CXFAXDN check valve is an ideal solution for applications where high pressure and chemical compatibility are critical, all while ensuring minimal leakage and maintenance requirements.

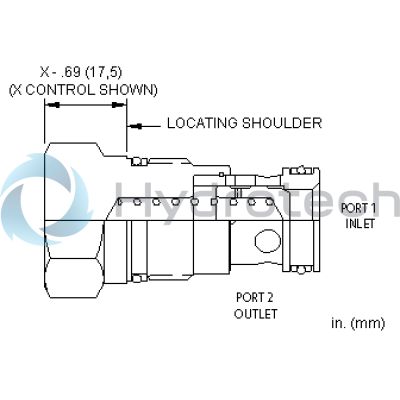

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
