SUN HYDRAULICS
CXEEXEV
$59.50 USD
Tags:
- SUN HYDRAULICS
- Material:CXEEXEV
- Model:CXEE-XEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXEEXEV (CXEEXEV) is a versatile hydraulic check valve designed for high-performance applications requiring reliable, low-leakage fluid control in a compact form. This model is specifically engineered as a free-flow, side-to-nose cheater check valve, which operates effectively in a standard 2-port configuration within a 3-port cavity, with the third port being blocked off. This unique design allows for the use of this valve in circuits initially intended for three-port valves without modifications. The CXEEXEV is capable of handling maximum operating pressures up to 5000 psi (350 bar) at ports 1 and 2, making it suitable for high-pressure systems. It supports flow rates up to 30 gpm (120 L/min), ensuring efficient operation in various hydraulic systems. The valve features exceptionally low leakage rates, less than one drop per minute (0.07 cc/min), which enhances system efficiency and reduces fluid loss. Constructed with Sun Hydraulics' floating style construction, the CXEEXEV minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This construction detail extends the valve\u2019s operational life and reliability. The model also accommodates Viton seals (part number 990202006), which provide excellent resistance to high temperatures and chemicals, further enhancing its durability and performance in corrosive environments. With an installation torque requirement between 45 \u2013 50 lbf\u00b7ft (61 \u2013 68 Nm) and a hex size of 1-1/8 inches (28.6 mm), the CXEEXEV is easy to install and maintain. Weighing just 0.50 lb (0.25 kg), it is lightweight yet robust enough to meet the demanding requirements of various hydraulic systems where space and weight are critical considerations.
The Sun Hydraulics CXEEXEV (CXEEXEV) is a versatile hydraulic check valve designed for high-performance applications requiring reliable, low-leakage fluid control in a compact form. This model is specifically engineered as a free-flow, side-to-nose cheater check valve, which operates effectively in a standard 2-port configuration within a 3-port cavity, with the third port being blocked off. This unique design allows for the use of this valve in circuits initially intended for three-port valves without modifications. The CXEEXEV is capable of handling maximum operating pressures up to 5000 psi (350 bar) at ports 1 and 2, making it suitable for high-pressure systems. It supports flow rates up to 30 gpm (120 L/min), ensuring efficient operation in various hydraulic systems. The valve features exceptionally low leakage rates, less than one drop per minute (0.07 cc/min), which enhances system efficiency and reduces fluid loss. Constructed with Sun Hydraulics' floating style construction, the CXEEXEV minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This construction detail extends the valve\u2019s operational life and reliability. The model also accommodates Viton seals (part number 990202006), which provide excellent resistance to high temperatures and chemicals, further enhancing its durability and performance in corrosive environments. With an installation torque requirement between 45 \u2013 50 lbf\u00b7ft (61 \u2013 68 Nm) and a hex size of 1-1/8 inches (28.6 mm), the CXEEXEV is easy to install and maintain. Weighing just 0.50 lb (0.25 kg), it is lightweight yet robust enough to meet the demanding requirements of various hydraulic systems where space and weight are critical considerations.

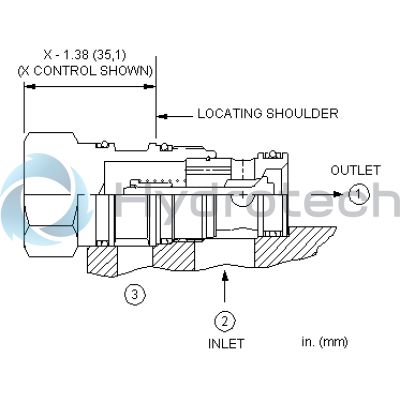

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-202-006 |
