SUN HYDRAULICS
CXEDXZV/LH
$68.70 USD
Tags:
- SUN HYDRAULICS
- Material:CXEDXZV/LH
- Model:CXED-XZV/LH
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXEDXZV/LH (CXEDXZV/LH) is a high-performance hydraulic check valve designed for on-off circuit applications, featuring a sidetonose flow configuration from inlet port 2 to outlet port 1. This design facilitates free flow in one direction while blocking it in the opposite, making it an essential component for correcting manifold drilling inaccuracies in existing systems. The valve is specifically engineered to fit into a T5A cavity and belongs to the Series 2 of Sun Hydraulics' product line. With a flow capacity of up to 30 gallons per minute (120 L/min), the CXEDXZV/LH can handle a maximum operating pressure of 5000 psi (350 bar) at both ports. It boasts an extremely low leakage rate, not exceeding 1 drop per minute (0.07 cc/min), ensuring efficient and reliable operation in various hydraulic systems. The valve's construction incorporates Sun's floating style mechanism which helps minimize internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This model measures 1 1/8 inches (28.6 mm) across flats and requires an installation torque between 45 and 50 lbf\u00b7ft (61 - 68 Nm). It weighs approximately 0.40 pounds (0.20 kg) making it robust yet lightweight enough for easy integration into hydraulic circuits. The CXEDXZV/LH uses Viton seals for enhanced durability and chemical resistance, ensuring long-term performance under demanding conditions.
The Sun Hydraulics CXEDXZV/LH (CXEDXZV/LH) is a high-performance hydraulic check valve designed for on-off circuit applications, featuring a sidetonose flow configuration from inlet port 2 to outlet port 1. This design facilitates free flow in one direction while blocking it in the opposite, making it an essential component for correcting manifold drilling inaccuracies in existing systems. The valve is specifically engineered to fit into a T5A cavity and belongs to the Series 2 of Sun Hydraulics' product line. With a flow capacity of up to 30 gallons per minute (120 L/min), the CXEDXZV/LH can handle a maximum operating pressure of 5000 psi (350 bar) at both ports. It boasts an extremely low leakage rate, not exceeding 1 drop per minute (0.07 cc/min), ensuring efficient and reliable operation in various hydraulic systems. The valve's construction incorporates Sun's floating style mechanism which helps minimize internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This model measures 1 1/8 inches (28.6 mm) across flats and requires an installation torque between 45 and 50 lbf\u00b7ft (61 - 68 Nm). It weighs approximately 0.40 pounds (0.20 kg) making it robust yet lightweight enough for easy integration into hydraulic circuits. The CXEDXZV/LH uses Viton seals for enhanced durability and chemical resistance, ensuring long-term performance under demanding conditions.

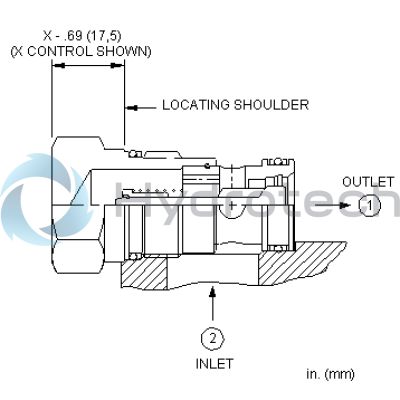

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
