SUN HYDRAULICS
CXEDXZN/AP
$135.30 USD
Tags:
- SUN HYDRAULICS
- Material:CXEDXZN/AP
- Model:CXED-XZN/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXEDXZN/AP (CXEDXZN/AP) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model is specifically engineered to facilitate free flow from the inlet port 2 to the outlet port 1 while effectively blocking flow in the reverse direction. The valve is characterized by its T5A cavity and belongs to the Series 2 lineup, ensuring compatibility with standardized cavities and simplifying installation processes. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 30 gpm (120 L/min), this check valve is suitable for rigorous industrial applications. It features an extremely low leakage rate, limited to less than one drop per minute (0.07 cc/min), which underscores its efficiency and minimizes fluid loss in systems. The valve's construction incorporates Sun's floating style design, which reduces risks associated with internal parts binding due to over-torquing or variations in cavity/cartridge machining. The CXEDXZN/AP model includes a Viton seal kit (990203006) ensuring robust performance under various operating conditions. Its compact design results in a minimal footprint with a weight of just 0.40 lb (0.20 kg). Installation specifications recommend a torque between 45 - 50 lbf.ft (61 - 68 Nm), and the hex size for the valve measures at 1 1/8 inches (28.6 mm). This check valve is an ideal solution for enhancing circuit performance where manifold drillings may be incorrect, offering both reliability and precision in controlling hydraulic flows.
The Sun Hydraulics CXEDXZN/AP (CXEDXZN/AP) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model is specifically engineered to facilitate free flow from the inlet port 2 to the outlet port 1 while effectively blocking flow in the reverse direction. The valve is characterized by its T5A cavity and belongs to the Series 2 lineup, ensuring compatibility with standardized cavities and simplifying installation processes. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 30 gpm (120 L/min), this check valve is suitable for rigorous industrial applications. It features an extremely low leakage rate, limited to less than one drop per minute (0.07 cc/min), which underscores its efficiency and minimizes fluid loss in systems. The valve's construction incorporates Sun's floating style design, which reduces risks associated with internal parts binding due to over-torquing or variations in cavity/cartridge machining. The CXEDXZN/AP model includes a Viton seal kit (990203006) ensuring robust performance under various operating conditions. Its compact design results in a minimal footprint with a weight of just 0.40 lb (0.20 kg). Installation specifications recommend a torque between 45 - 50 lbf.ft (61 - 68 Nm), and the hex size for the valve measures at 1 1/8 inches (28.6 mm). This check valve is an ideal solution for enhancing circuit performance where manifold drillings may be incorrect, offering both reliability and precision in controlling hydraulic flows.

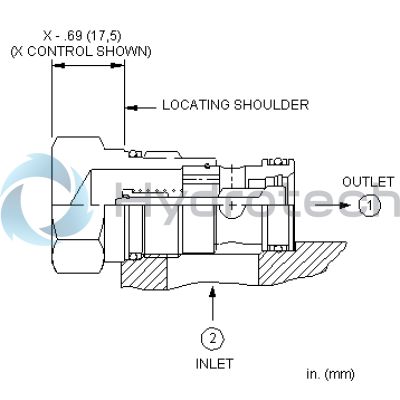

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
