SUN HYDRAULICS
CXECXZV
$81.40 USD
Tags:
- SUN HYDRAULICS
- Material:CXECXZV
- Model:CXEC-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXECXZV (CXECXZV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free flow from its inlet port 2 to outlet port 1, while effectively blocking flow in the opposite direction. The valve is engineered with a Delrin seat, making it suitable for medium-pressure systems that may contain some degree of contamination but do not experience extreme flow rates or temperatures. The CXECXZV operates within a T5A cavity and belongs to the Series 2 category of Sun Hydraulics' valves. It supports a maximum flow capacity of 30 gallons per minute (approximately 120 liters per minute) and can withstand a maximum operating pressure of up to 3000 psi (210 bar). The valve's construction includes Sun's floating style design which reduces the risk of internal parts jamming due to over-torque during installation or variations in cavity/cartridge machining. This model is particularly useful as a circuit saver in systems where manifold drilling inaccuracies occur, allowing for correction without extensive system alterations. Additionally, it boasts an extremely low leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient and clean operation. The valve requires an installation torque between 45 and 50 lbf ft (61 - 68 Nm) and utilizes a Viton seal kit (990203006), enhancing its durability and performance reliability under varied conditions. With its hex size measuring at 1-1/8 inches (28.6 mm), the CXECXZV provides robust functionality in a compact form factor, ideal for integrated hydraulic circuits where space and precision are paramount.
The Sun Hydraulics CXECXZV (CXECXZV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free flow from its inlet port 2 to outlet port 1, while effectively blocking flow in the opposite direction. The valve is engineered with a Delrin seat, making it suitable for medium-pressure systems that may contain some degree of contamination but do not experience extreme flow rates or temperatures. The CXECXZV operates within a T5A cavity and belongs to the Series 2 category of Sun Hydraulics' valves. It supports a maximum flow capacity of 30 gallons per minute (approximately 120 liters per minute) and can withstand a maximum operating pressure of up to 3000 psi (210 bar). The valve's construction includes Sun's floating style design which reduces the risk of internal parts jamming due to over-torque during installation or variations in cavity/cartridge machining. This model is particularly useful as a circuit saver in systems where manifold drilling inaccuracies occur, allowing for correction without extensive system alterations. Additionally, it boasts an extremely low leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient and clean operation. The valve requires an installation torque between 45 and 50 lbf ft (61 - 68 Nm) and utilizes a Viton seal kit (990203006), enhancing its durability and performance reliability under varied conditions. With its hex size measuring at 1-1/8 inches (28.6 mm), the CXECXZV provides robust functionality in a compact form factor, ideal for integrated hydraulic circuits where space and precision are paramount.

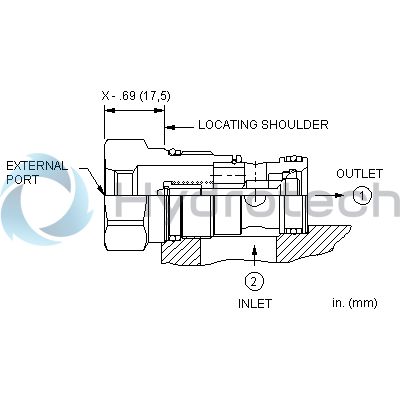

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
