SUN HYDRAULICS
CXDCXZV
$43.10 USD
Tags:
- SUN HYDRAULICS
- Material:CXDCXZV
- Model:CXDC-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXDCXZV (CXDCXZV) is a versatile hydraulic component designed for efficient fluid control in a variety of applications. This model is a free-flow, nose-to-side cheater check valve that operates as a standard 2-port check valve when the third port of its cartridge is blocked off. It's particularly useful for integrating a check valve into an existing three-port cavity, enhancing adaptability in hydraulic circuit design. The CXDCXZV check valve is engineered to handle a maximum flow capacity of 20 gpm (80 L/min) and can withstand an operating pressure up to 5000 psi (350 bar). It features extremely low leakage rates, limited to less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and efficient operation. The construction of the valve incorporates Sun\u2019s floating style mechanism which aids in reducing the risks of internal parts binding due to variations in cavity or cartridge machining or excessive installation torque. For installation, the valve requires a hex size of 7/8 in. (22.2 mm) and an installation torque ranging between 30 - 35 lbf\u00b7ft (41 - 47 Nm). It is compatible with T11A cavity specifications and falls under the Series 1 classification by Sun Hydraulics. The use of Viton seals in its structure further enhances its durability and suitability for challenging industrial environments where reliable fluid handling is critical. Overall, the Sun Hydraulics CXDCXZV offers robust performance for systems requiring precise check valving capabilities, especially where space or existing configurations present limitations. Its design minimizes leakage and maximizes operational reliability, making it an excellent choice for high-pressure applications demanding stringent control over fluid flow.
The Sun Hydraulics CXDCXZV (CXDCXZV) is a versatile hydraulic component designed for efficient fluid control in a variety of applications. This model is a free-flow, nose-to-side cheater check valve that operates as a standard 2-port check valve when the third port of its cartridge is blocked off. It's particularly useful for integrating a check valve into an existing three-port cavity, enhancing adaptability in hydraulic circuit design. The CXDCXZV check valve is engineered to handle a maximum flow capacity of 20 gpm (80 L/min) and can withstand an operating pressure up to 5000 psi (350 bar). It features extremely low leakage rates, limited to less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and efficient operation. The construction of the valve incorporates Sun\u2019s floating style mechanism which aids in reducing the risks of internal parts binding due to variations in cavity or cartridge machining or excessive installation torque. For installation, the valve requires a hex size of 7/8 in. (22.2 mm) and an installation torque ranging between 30 - 35 lbf\u00b7ft (41 - 47 Nm). It is compatible with T11A cavity specifications and falls under the Series 1 classification by Sun Hydraulics. The use of Viton seals in its structure further enhances its durability and suitability for challenging industrial environments where reliable fluid handling is critical. Overall, the Sun Hydraulics CXDCXZV offers robust performance for systems requiring precise check valving capabilities, especially where space or existing configurations present limitations. Its design minimizes leakage and maximizes operational reliability, making it an excellent choice for high-pressure applications demanding stringent control over fluid flow.

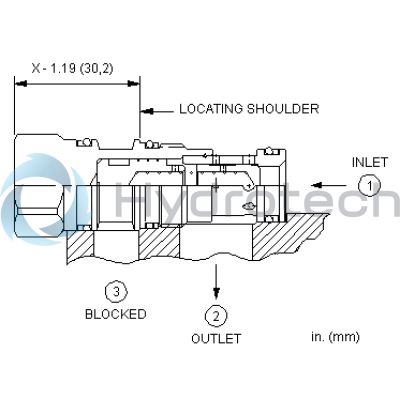

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-011-006 |
