SUN HYDRAULICS
CXCEXBN
$37.20 USD
Tags:
- SUN HYDRAULICS
- Material:CXCEXBN
- Model:CXCE-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCEXBN (CXCEXBN) is a versatile hydraulic check valve designed for high-pressure applications up to 5000 psi (350 bar). This valve is particularly useful in circuits requiring a check valve within an existing three-port cavity, as it functions as a standard 2-port check valve with the third port blocked off. The CXCEXBN model features a free-flow, side-to-nose cheater configuration that allows for effective operation in various hydraulic systems. With a maximum flow capacity of 15 gpm (60 L/min), the CXCEXBN ensures efficient fluid handling and control. It is engineered to minimize leakage, offering an exceptionally low maximum leakage rate of less than one drop per minute (0.07 cc/min), which enhances system reliability and performance. The construction of the valve incorporates Sun's floating style design, which reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model is built to withstand corrosive environments, indicated by specific model code suffixes AP or LH for enhanced corrosion resistance. Its compact size, with a weight of only 0.20 lb (0.10 kg), and hex size of 7/8 in. (22.2 mm), allows for easy installation with recommended torque settings between 30 - 35 lbf ft (41 - 47 Nm). The CXCEXBN uses Viton seals for improved durability and resistance to harsh conditions, ensuring long-term usability and maintenance ease in various industrial applications.
The Sun Hydraulics CXCEXBN (CXCEXBN) is a versatile hydraulic check valve designed for high-pressure applications up to 5000 psi (350 bar). This valve is particularly useful in circuits requiring a check valve within an existing three-port cavity, as it functions as a standard 2-port check valve with the third port blocked off. The CXCEXBN model features a free-flow, side-to-nose cheater configuration that allows for effective operation in various hydraulic systems. With a maximum flow capacity of 15 gpm (60 L/min), the CXCEXBN ensures efficient fluid handling and control. It is engineered to minimize leakage, offering an exceptionally low maximum leakage rate of less than one drop per minute (0.07 cc/min), which enhances system reliability and performance. The construction of the valve incorporates Sun's floating style design, which reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model is built to withstand corrosive environments, indicated by specific model code suffixes AP or LH for enhanced corrosion resistance. Its compact size, with a weight of only 0.20 lb (0.10 kg), and hex size of 7/8 in. (22.2 mm), allows for easy installation with recommended torque settings between 30 - 35 lbf ft (41 - 47 Nm). The CXCEXBN uses Viton seals for improved durability and resistance to harsh conditions, ensuring long-term usability and maintenance ease in various industrial applications.

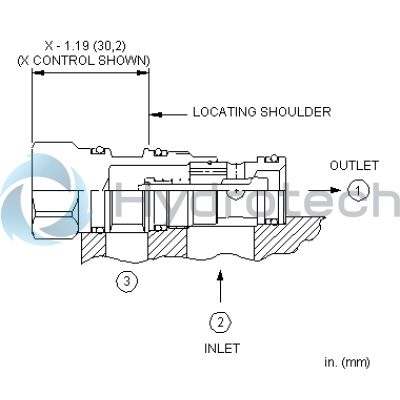

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
