SUN HYDRAULICS
CXCDXZN/AP
$130.80 USD
Tags:
- SUN HYDRAULICS
- Material:CXCDXZN/AP
- Model:CXCD-XZN/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDXZN/AP (CXCDXZN/AP) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free flow from the inlet port 2 to the outlet port 1, while effectively blocking flow in the reverse direction, making it an essential component for systems where backflow could be detrimental. The CXCDXZN/AP is particularly useful as a circuit saver in scenarios where manifold drillings might be incorrect, offering a practical solution without needing extensive system modifications. The valve operates under a maximum pressure of 5000 psi (350 bar) at both ports and supports a flow capacity up to 15 gpm (60 L/min), ensuring robust performance even under demanding conditions. With an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), this model stands out for its efficiency and minimal fluid loss, which is critical in maintaining system integrity and reducing wastage. Constructed with Sun Hydraulics' floating style design, the CXCDXZN/AP minimizes potential internal parts binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and reliability of the valve over its operational lifespan. The valve's compact size (.20 lb/0.10 kg) and specific installation requirements (30 - 35 lbf ft/41 - 47 Nm torque) make it easy to integrate into various setups without significant adjustments. Additionally, it utilizes Viton seals (990010006) for superior chemical resistance and performance consistency across various temperature ranges.
The Sun Hydraulics CXCDXZN/AP (CXCDXZN/AP) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free flow from the inlet port 2 to the outlet port 1, while effectively blocking flow in the reverse direction, making it an essential component for systems where backflow could be detrimental. The CXCDXZN/AP is particularly useful as a circuit saver in scenarios where manifold drillings might be incorrect, offering a practical solution without needing extensive system modifications. The valve operates under a maximum pressure of 5000 psi (350 bar) at both ports and supports a flow capacity up to 15 gpm (60 L/min), ensuring robust performance even under demanding conditions. With an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), this model stands out for its efficiency and minimal fluid loss, which is critical in maintaining system integrity and reducing wastage. Constructed with Sun Hydraulics' floating style design, the CXCDXZN/AP minimizes potential internal parts binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and reliability of the valve over its operational lifespan. The valve's compact size (.20 lb/0.10 kg) and specific installation requirements (30 - 35 lbf ft/41 - 47 Nm torque) make it easy to integrate into various setups without significant adjustments. Additionally, it utilizes Viton seals (990010006) for superior chemical resistance and performance consistency across various temperature ranges.

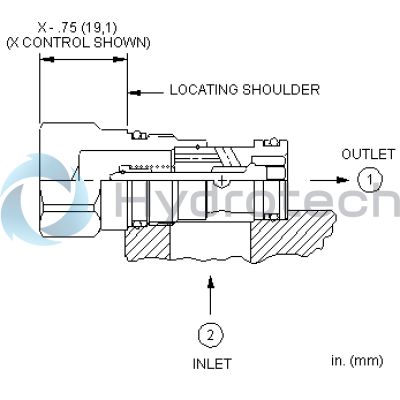

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
