SUN HYDRAULICS
CXCDXEV
$32.50 USD
Tags:
- SUN HYDRAULICS
- Material:CXCDXEV
- Model:CXCD-XEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDXEV (CXCDXEV) is a high-performance check valve designed for hydraulic circuits requiring reliable, one-way flow control. This model features a freeflow design that facilitates unimpeded flow from the inlet port 2 to the outlet port 1 while blocking the reverse direction effectively. The CXCDXEV is particularly useful as a circuit saver in systems where manifold drillings may have been executed incorrectly, offering an efficient solution without the need for extensive rework. Engineered for durability and performance, the CXCDXEV operates under a maximum pressure of 5000 psi (350 bar) at both ports and supports flow rates up to 15 gpm (60 L/min). It is constructed with Sun\u2019s floating style construction which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design ensures consistent operation and longevity even under demanding conditions. The valve also boasts an exceptionally low leakage rate of less than 1 drop per minute (0.07 cc/min), making it an ideal choice for applications where minimal fluid loss is critical. The compact and robust design includes a hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Weighing just 0.20 lb (0.10 kg), the CXCDXEV offers a lightweight yet powerful solution for hydraulic check valve needs, complete with Viton seals for enhanced performance across various operating environments.
The Sun Hydraulics CXCDXEV (CXCDXEV) is a high-performance check valve designed for hydraulic circuits requiring reliable, one-way flow control. This model features a freeflow design that facilitates unimpeded flow from the inlet port 2 to the outlet port 1 while blocking the reverse direction effectively. The CXCDXEV is particularly useful as a circuit saver in systems where manifold drillings may have been executed incorrectly, offering an efficient solution without the need for extensive rework. Engineered for durability and performance, the CXCDXEV operates under a maximum pressure of 5000 psi (350 bar) at both ports and supports flow rates up to 15 gpm (60 L/min). It is constructed with Sun\u2019s floating style construction which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design ensures consistent operation and longevity even under demanding conditions. The valve also boasts an exceptionally low leakage rate of less than 1 drop per minute (0.07 cc/min), making it an ideal choice for applications where minimal fluid loss is critical. The compact and robust design includes a hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Weighing just 0.20 lb (0.10 kg), the CXCDXEV offers a lightweight yet powerful solution for hydraulic check valve needs, complete with Viton seals for enhanced performance across various operating environments.

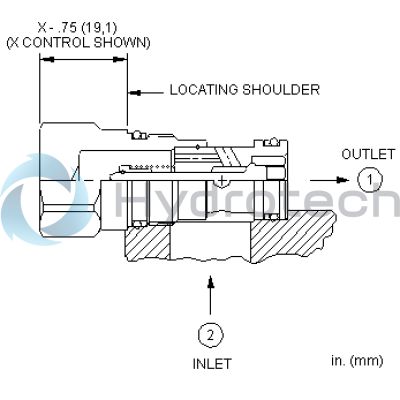

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
