SUN HYDRAULICS
CXCDXEN
$26.00 USD
Tags:
- SUN HYDRAULICS
- Material:CXCDXEN
- Model:CXCD-XEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDXEN (CXCDXEN) is a robust two-port check valve designed for hydraulic applications requiring reliable one-way flow control. This model facilitates free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, making it an essential component for circuit protection and efficiency. The CXCDXEN is particularly useful in correcting manifold drilling inaccuracies in existing circuits, acting as a circuit saver by accommodating such discrepancies without the need for extensive system modifications. This valve is engineered to handle a maximum operating pressure of 5000 psi (350 bar) at both ports and offers a flow capacity up to 15 gpm (60 L/min). It features Sun's floating style construction which reduces the risk of internal parts binding that can occur due to over-torquing during installation or from variations in cavity/cartridge machining. Additionally, the CXCDXEN boasts an impressively low maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system integrity. With its compact design, weighing just 0.20 lb (0.10 kg), and requiring a valve installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm), the CXCDXEN is not only efficient but also easy to install using standard tools. The valve uses Viton seals for high temperature and chemical resistance, further enhancing its durability and suitability for various hydraulic applications. This model\u2019s adaptability and performance specifications make it an ideal choice for those seeking a reliable solution in hydraulic circuitry management.
The Sun Hydraulics CXCDXEN (CXCDXEN) is a robust two-port check valve designed for hydraulic applications requiring reliable one-way flow control. This model facilitates free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, making it an essential component for circuit protection and efficiency. The CXCDXEN is particularly useful in correcting manifold drilling inaccuracies in existing circuits, acting as a circuit saver by accommodating such discrepancies without the need for extensive system modifications. This valve is engineered to handle a maximum operating pressure of 5000 psi (350 bar) at both ports and offers a flow capacity up to 15 gpm (60 L/min). It features Sun's floating style construction which reduces the risk of internal parts binding that can occur due to over-torquing during installation or from variations in cavity/cartridge machining. Additionally, the CXCDXEN boasts an impressively low maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system integrity. With its compact design, weighing just 0.20 lb (0.10 kg), and requiring a valve installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm), the CXCDXEN is not only efficient but also easy to install using standard tools. The valve uses Viton seals for high temperature and chemical resistance, further enhancing its durability and suitability for various hydraulic applications. This model\u2019s adaptability and performance specifications make it an ideal choice for those seeking a reliable solution in hydraulic circuitry management.

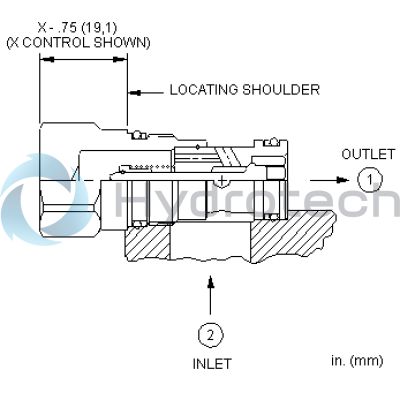

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
