SUN HYDRAULICS
CXCBXEV/LH
$78.20 USD
Tags:
- SUN HYDRAULICS
- Material:CXCBXEV/LH
- Model:CXCB-XEV/LH
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCBXEV/LH (CXCBXEV/LH) is a high-performance check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model features a freeflow, side-to-nose configuration that facilitates free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. The valve is equipped with a Delrin seat, making it appropriate for use in medium pressure systems that may contain some level of contamination but do not experience extremely high flows or temperatures. This check valve is particularly useful in correcting existing circuits with incorrect manifold drillings without the need for extensive rework, acting as a circuit saver. The design includes Sun's floating style construction which reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The CXCBXEV/LH operates efficiently within a maximum operating pressure of 3000 psi (210 bar) and has a capacity of up to 15 gpm (60 L/min). It ensures minimal fluid loss with an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min). The valve's compact size includes a hex size of 7/8 in. (22.2 mm) and weighs only 0.20 lb (0.10 kg), facilitating easy installation with recommended torque settings between 30 \u2013 35 lbf ft (41 \u2013 47 Nm). It uses Viton seals for enhanced durability and performance under varied conditions. Overall, the Sun Hydraulics CXCBXEV/LH check valve is an effective solution for enhancing system reliability and correcting hydraulic circuit configurations while maintaining stringent control over fluid leakage and flow direction.
The Sun Hydraulics CXCBXEV/LH (CXCBXEV/LH) is a high-performance check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model features a freeflow, side-to-nose configuration that facilitates free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. The valve is equipped with a Delrin seat, making it appropriate for use in medium pressure systems that may contain some level of contamination but do not experience extremely high flows or temperatures. This check valve is particularly useful in correcting existing circuits with incorrect manifold drillings without the need for extensive rework, acting as a circuit saver. The design includes Sun's floating style construction which reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The CXCBXEV/LH operates efficiently within a maximum operating pressure of 3000 psi (210 bar) and has a capacity of up to 15 gpm (60 L/min). It ensures minimal fluid loss with an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min). The valve's compact size includes a hex size of 7/8 in. (22.2 mm) and weighs only 0.20 lb (0.10 kg), facilitating easy installation with recommended torque settings between 30 \u2013 35 lbf ft (41 \u2013 47 Nm). It uses Viton seals for enhanced durability and performance under varied conditions. Overall, the Sun Hydraulics CXCBXEV/LH check valve is an effective solution for enhancing system reliability and correcting hydraulic circuit configurations while maintaining stringent control over fluid leakage and flow direction.
Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

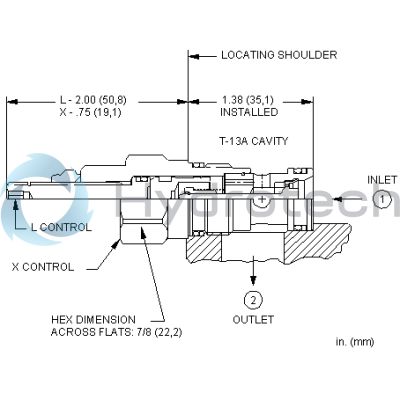

| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
